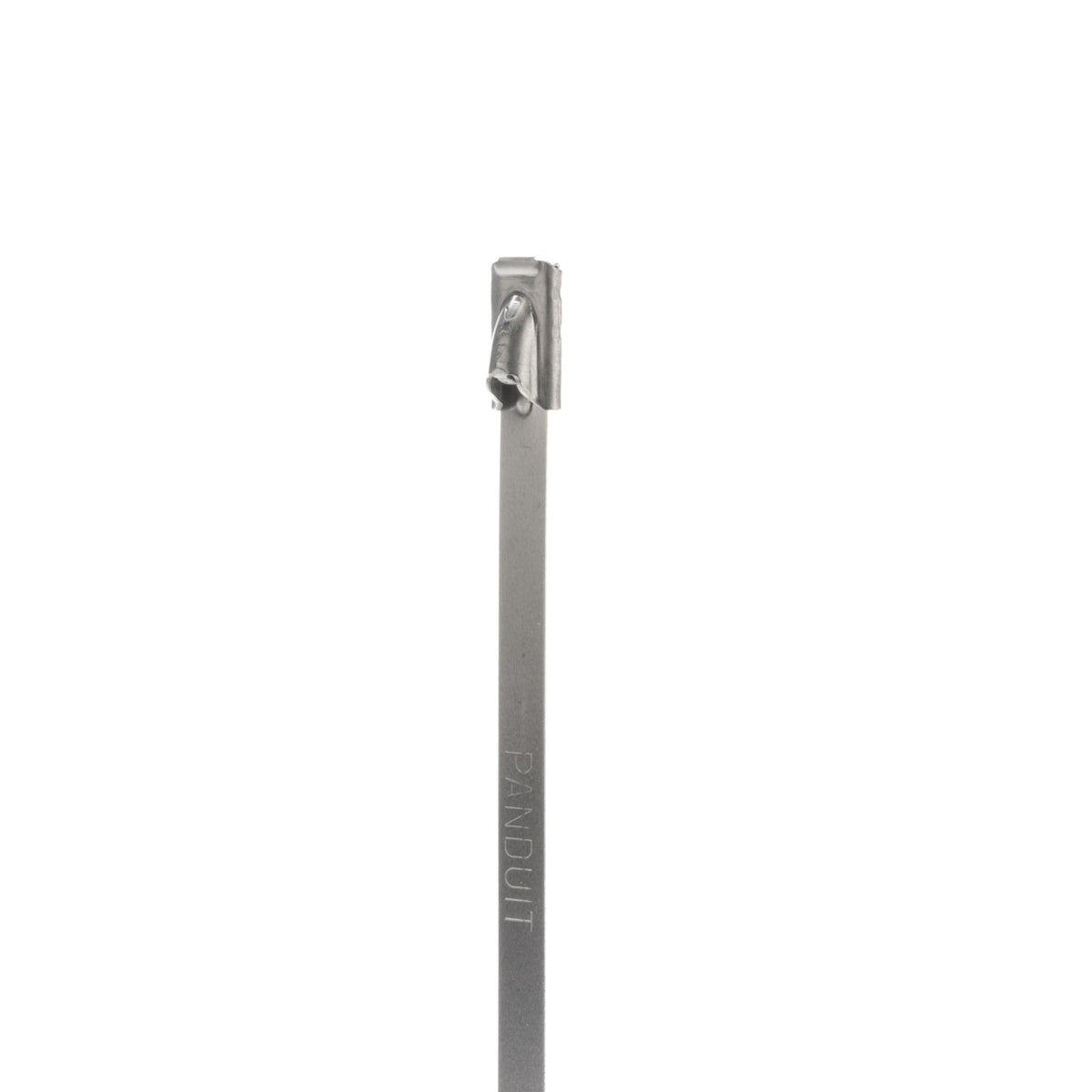

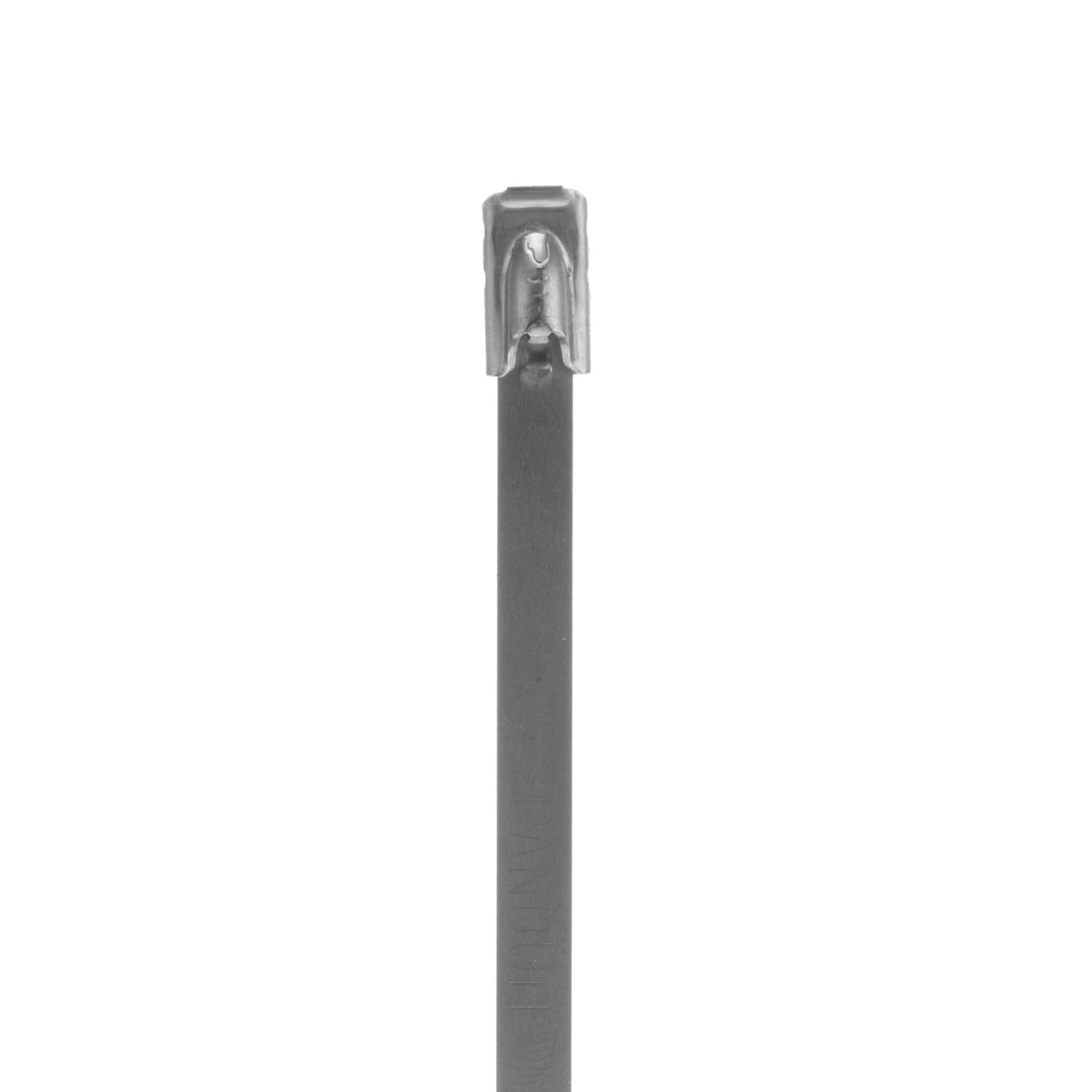

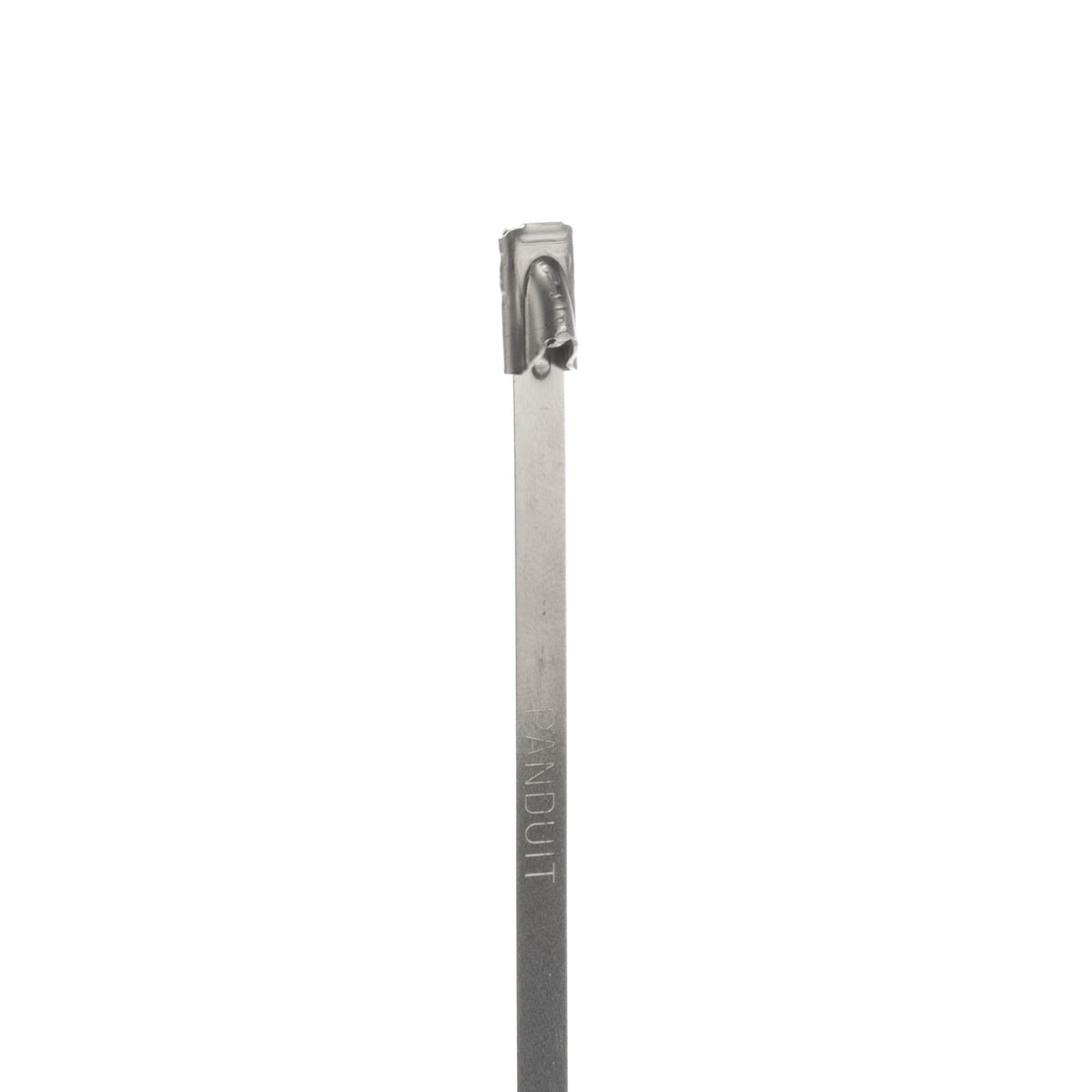

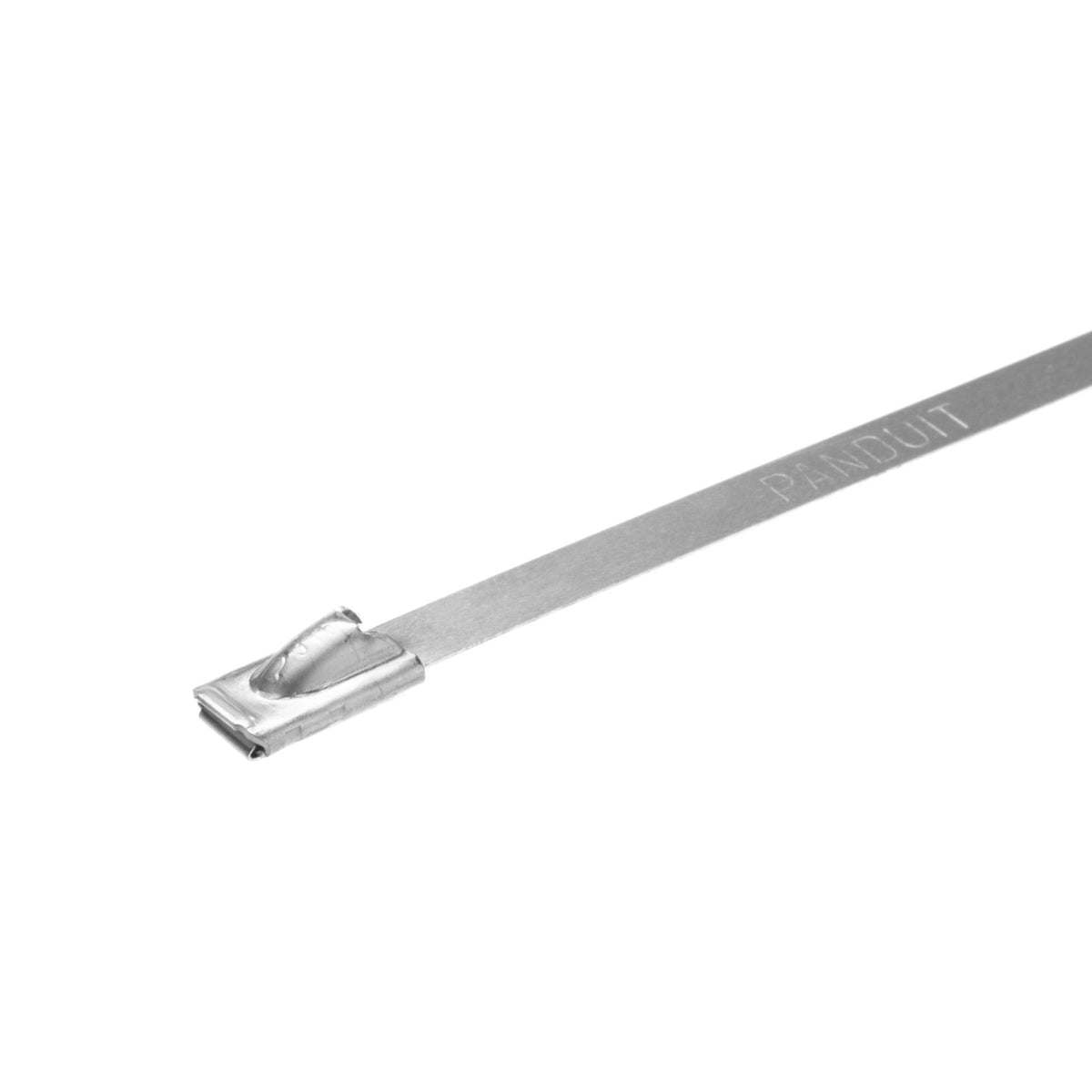

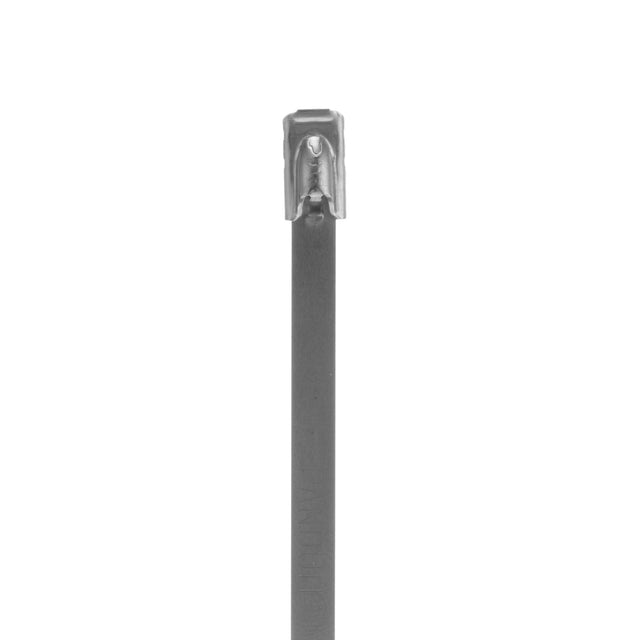

Panduit MLT4S-CP316 | Pan-Steel MLT4S-CP316 Cable Tie, SS 316, Standard, 4" Dia., PK100
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit MLT4S-CP316 | Pan-Steel MLT4S-CP316 Cable Tie, SS 316, Stan...
Description
Description
The MLT4S-CP316 self locking cable tie speeds up installation with a unique self-locking head design that locks into place at any part of the tie body. The smooth surfaces and rounded edges assure cable protection and worker safety while providing a strong, durable method of cabling bundle. The MLT4S-CP316 cable tie can be used in a wide range of indoor, outdoor, and underground applications. Color Stainless Steel.
Panduit MLT4S-CP316 Mlt Tie, 316 Ss, Standard, 14.3 (362mm), .010 (.25mm) Thk, Pack Of 100
Specifications
Specifications
Panduit - MLT4S-CP316 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - MLT4S-CP316 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MLT4S-CP316 |
| Item Description | Pan-Steel MLT4S-CP316 Cable Tie, SS 316, Standard, 4" Dia., PK100 |
| Product Type | Stainless Steel Cable Ties |
| Sub Brand | Pan-Steel |
| Color | Metallic |
| Environment | Harsh |
| Material | Stainless Steel Type 316 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 14.3 |
| Overall Length (mm) | 362 |
| Body Width (In.) | 0.18 |
| Body Width (mm) | 4.6 |
| Body Thickness (In.) | 0.01 |
| Body Thickness (mm) | 0.25 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 890 |
| Minimum Loop Tensile Strength (lb) | 200 |
| Maximum Operating Temperature (°C) | 538 |
| Maximum Operating Temperature (°F) | 1000 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -60 |
| Minimum Installation Temperature (°F) | -76 |
| Standards Met | UL E56854,CE,ABS,GL,SAE,BV,LR,DNV |
| Military Cross Reference Number | M23190/3-2 |
| For Use With | GS4MT-E, HTMT, PPTMT, ST2MT |
| Application | Harsh Environment |
Panduit - MLT4S-CP316 - Package Information
| UPC | 07498354401 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0238 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.1191 |
Panduit - MLT4S-CP316 - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
