Brand: Panduit
|
SKU:
384366

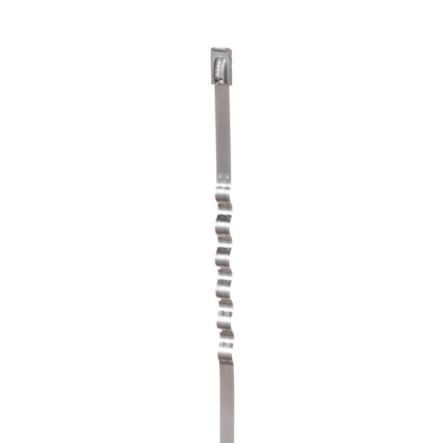

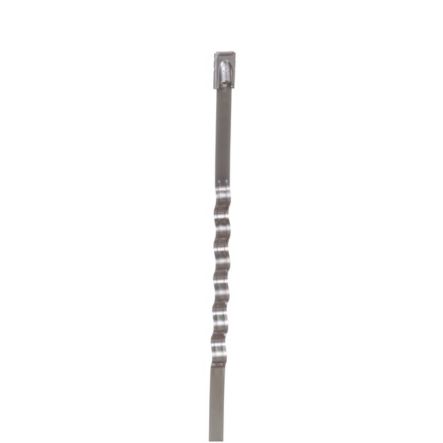

Panduit MLT4WS-LP | Pan-Steel MLT4WS-LP Stainless Steel Cable Ties
Regular price
$104.43
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit MLT4WS-LP | Pan-Steel MLT4WS-LP Stainless Steel Cable Ties
Regular price
$104.43
Unit price
Description
Description
Panduit MLT4WS-LP | Pan-Steel MLT4WS-LP Stainless Steel Cable Ties
Panduit MLT Wave-Ty Ties readily expand and contract to accommodate electric heat trace applications. Plus, ties are built with 304 stainless steel, so it is perfectly suited for indoor and outdoor environments. Standard, 14.3L (363mm), Bundles up to 4.0 (102mm), 50pc.
Panduit - MLT4WS-LP - Features
- Stainless Steel Wave-Ty(TM), standard, 4"; (102mm) max bundle diameter.
- The unique wave-form spring maintains greater installed tension on non-resilient objects
- Loop tensile strength of 200 lbs. provides superior strength for increased performance and reliability on most bundling applications
- Type 304 and 316 stainless steel offer excellent resistance to temperature extremes, corrosion, weather and UV radiation for use in harsh environments
- Still incorporates all the features of the original Metal Locking Tie (MLT)
- Minimum bundle diameter 2.00 inches (50 mm)
Specifications
Specifications
Panduit - MLT4WS-LP - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - MLT4WS-LP - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MLT4WS-LP |
| Item Description | Pan-Steel MLT4WS-LP Stainless Steel Cable Ties |
| Product Type | Stainless Steel Cable Ties |
| Sub Brand | Wave-Ty |
| Color | Natural |
| Environment | Indoor/Outdoor |
| Material | Stainless Steel Type 304 |
| Resistance Properties | UV-Resistant |
| Overall Length (In.) | 14.3 |
| Overall Length (mm) | 362 |
| Body Width (In.) | 0.18 |
| Body Width (mm) | 4.6 |
| Body Thickness (In.) | 0.01 |
| Body Thickness (mm) | 0.3 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 101.6 |
| Minimum Loop Tensile Strength (N) | 890 |
| Minimum Loop Tensile Strength (lb) | 200 |
| Maximum Operating Temperature (°C) | 538 |
| Maximum Operating Temperature (°F) | 1000 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -60 |
| Minimum Installation Temperature (°F) | -76 |
| Standards Met | CE,ABS,LR,UL |
| For Use With | GS4MT,PPTMT,ST2MT,ST3MT,HTMT |
| Application | General |
Panduit - MLT4WS-LP - Package Information
| UPC | 07498342162 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0238 |
| Standard. Ctn. Quantity | 250 |
| Standard. Ctn. Volume (cf) | 0.1191 |
