Brand: Panduit
|
SKU:
327504-PK
Panduit MLTC6H-LP316 | 20.5" Stainless Steel Cabletie 6.0" Dia Pk 50 Eamultiplo 50 Moq 1000
Regular price
$317.87
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit MLTC6H-LP316 | 20.5" Stainless Steel Cabletie 6.0"...
Regular price
$317.87
Unit price
Description
Description

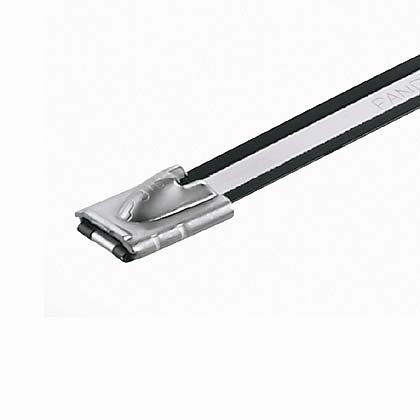

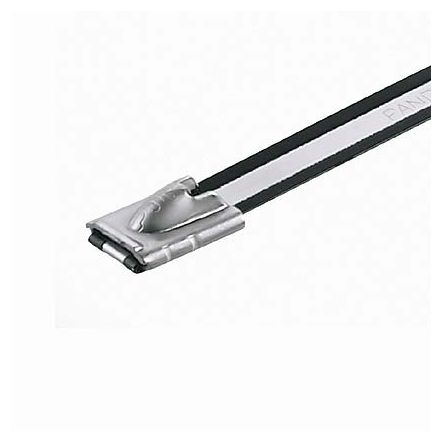

Panduit MLTC6H-LP316 | Pan-Steel MLTC6H-LP316 Cable Tie, PA 11 Coated SS 316, Black, Heavy, 6" Dia.
The MLTC6H-LP316 selectively nylon coated, self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any length along the tie body. The Nylon 11 coating is UV-resistant, low smoke, and halogen free. The coating also provides additional edge protection and prevents corrosion between dissimilar metals.
Panduit - MLTC6H-LP316 - Features
- Nylon coated stainless steel tie, AISI 316, heavy, 20.5"; length.
- Self-locking head design speeds installation and locks into place at any length along the tie body
- Nylon 11 coating provides additional edge protection and prevents corrosion between dissimilar metals
- AISI 316 stainless steel for the most corrosive environments
- Available in heavy cross section
- UV resistant, low smoke, halogen-free material
- Temperature tolerance -40F (-40C) to 285F (140C)
Specifications
Specifications
Panduit - MLTC6H-LP316 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - MLTC6H-LP316 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MLTC6H-LP316 |
| Item Description | Pan-Steel MLTC6H-LP316 Cable Tie, PA 11 Coated SS 316, Black, Heavy, 6" Dia. |
| Product Type | Stainless Steel Cable Ties |
| Sub Brand | Pan-Steel |
| Color | Black |
| Environment | Harsh |
| Material | Nylon 11 Selectively Coated Stainless Steel Type 316 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 20.5 |
| Overall Length (mm) | 521 |
| Body Width (In.) | 0.319 |
| Body Width (mm) | 8.1 |
| Body Thickness (In.) | 0.018 |
| Body Thickness (mm) | 0.5 |
| Maximum Bundle Diameter (In.) | 6 |
| Maximum Bundle Diameter (mm) | 152 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 1112 |
| Minimum Loop Tensile Strength (lb) | 250 |
| Maximum Operating Temperature (°C) | 140 |
| Maximum Operating Temperature (°F) | 284 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Minimum Installation Temperature (°C) | -40 |
| Minimum Installation Temperature (°F) | -40 |
| Standards Met | UL E56854,CE,ABS |
| For Use With | GS4MT-E, PBTMT, PPTMT, ST2MT, HTMT |
| Application | Harsh Environment |
Panduit - MLTC6H-LP316 - Package Information
| UPC | 07498322550 |
|---|---|
| Standard Pkg. Qty. | 50 |
| Standard Package Volume (cf) | 0.0326 |
| Standard Ctn. Qty. | 250 |
| Standard Ctn. Volume (cf) | 0.1631 |
Panduit - MLTC6H-LP316 - Videos
| Video 1 | Click to View |
|---|
