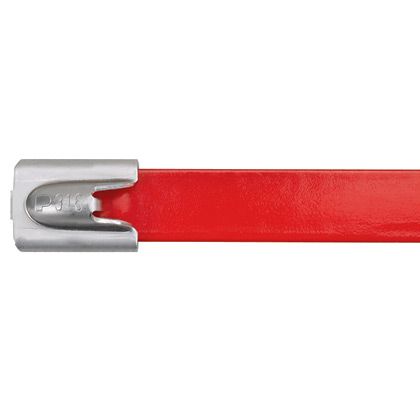

Panduit MLTFC4H-LP316RD | Pan-Steel Stainless Steel Cable Ties
Description
Description
Secure your toughest cable bundles with our corrosion-resistant, self-locking stainless steel cable tie. Featuring a quick-install design and protective coating, great for demanding environments.
Polyester coated stainless steel tie, AISI 316, heavy, 14.3" length.
Panduit Pan-Steel Cable Tie, Heavy Cross Section, Series: MLTFC Series, 14.3 in Length, 0.31 in Width, 0.01 in Thickness, 4 in Diameter Bundle, Lock Mechanism: Self-Locking, 250 lb Tensile Strength, -40 to 302 deg F, Polyester Coated 316 Stainless Steel, Red
Panduit - MLTFC4H-LP316RD - Features
- Cable ties speed up installation with a unique self-locking head design that locks into any part of the tie
- Polyester coating provides additional edge protection and prevents corrosion between dissimilar metals
- The 316 stainless steel is wrapped in UV-resistant, halogen free, low smoke polyester to promote worker safety and reliability in corrosive, high vibration, temperature extreme environments
- Self-locking head design speeds installation and locks into place at any length along the tie body
- Polyester coating provides additional edge protection and prevents corrosion between dissimilar metals
- AISI 316 stainless steel for the most corrosive environments
- Available in standard, heavy, extra-heavy and super-heavy cross sections
- UV resistant, low smoke, halogen-free material
- Temperature tolerance -40F (-40C) to 302F (150C)
Specifications
Specifications
Panduit - MLTFC4H-LP316RD - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MLTFC4H-LP316RD |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Product Type | Cable Tie |
| Sub Brand | Pan-Steel |
| Color | Red |
| Environment | Harsh |
| Material | Stainless Steel Type 316 |
| Finish/Coating | Polyester Fully-Coated |
| Resistance Properties | UV-Resistant |
| Overall Length (In.) | 14.3 |
| Overall Length (mm) | 362 |
| Body Width (In.) | 0.31 |
| Body Width (mm) | 7.9 |
| Body Thickness (In.) | 0.017 |
| Body Thickness (mm) | 0.4 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 101.6 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 1112 |
| Minimum Loop Tensile Strength (lb) | 250 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| UPC | 07498311778 |
Panduit - MLTFC4H-LP316RD - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 7326.90.8688 |
