Panduit MP175-M | Mp175-M Marker Plate, White, Pa 6.6, Cable Tie, 1.75X0.75", Pk1000
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit MP175-M | Mp175-M Marker Plate, White, Pa 6.6, Cable Tie, 1...
Description
Description

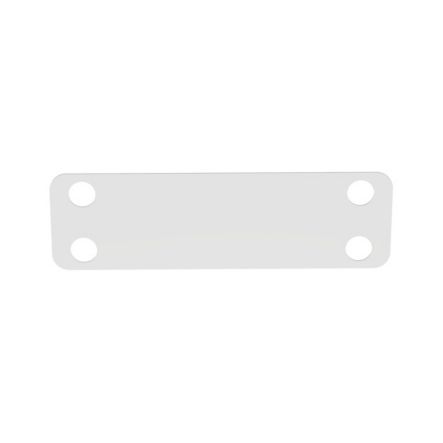

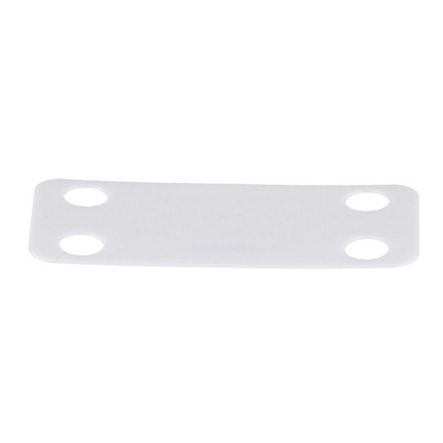

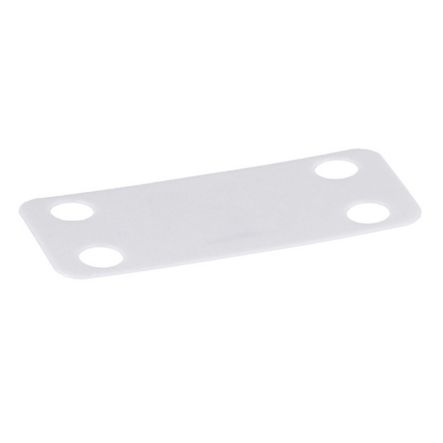

Panduit MP175-M Marker Plates can be installed as flags, tags or wrap around identification plates, to clearly identify all wire harnesses. Use with nylon marking pens for an easy and economic alternative to identify wire harnesses. They are 1.75" x 0.75" (44.5mm x 19.1mm) in size and designed for use in indoor environments. Use with miniature, intermediate and standard cable ties. Made of Nylon 6.6, are white in color and come in packages of 1000.
Panduit - MP175-M - Features
- Harness Identification Marker Plate
- Install as flags, tags, or wrap-around identification plates to clearly identify all wire harnesses
- Use with nylon marking pens for an easy and economic alternative to identify wire harnesses
- Available in black or white to match the wire harness
Specifications
Specifications
Panduit - MP175-M - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Accessories
Panduit - MP175-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MP175-M |
| Item Description | Mp175-M Marker Plate, White, Pa 6.6, Cable Tie, 1.75X0.75", Pk1000 |
| Application | Use as Flags, Tags, or Wrap-Around Identification Plates to Clearly Identify All Wire Harnesses |
| Product Type | Marker Plate |
| Color | White |
| Environment | Indoor |
| For Use With | Cable Ties : M, I, S |
| Material | Nylon 6.6 |
| Maximum Installation Temperature (°C) | 85 |
| Minimum Installation Temperature (°C) | -20 |
| Maximum Installation Temperature (°F) | 185 |
| Minimum Installation Temperature (°F) | -4 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -60 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°F) | -76 |
| Overall Length (In.) | 1.75 |
| Overall Length (mm) | 44.4 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19 |
| Standards Met | RoHS Compliant. |
| Mount Method | Cable Tie |
Panduit - MP175-M - Package Information
| UPC | 07498365021 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.0839 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 0.4196 |
