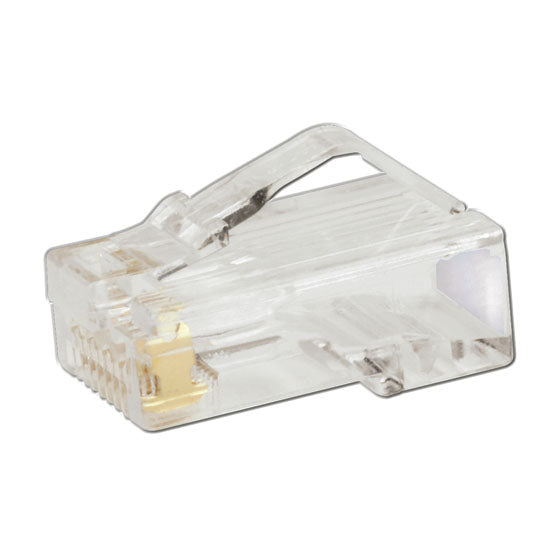

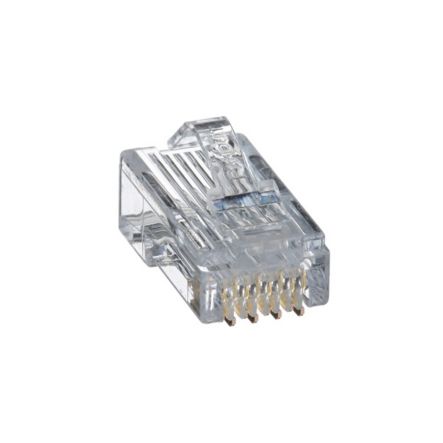

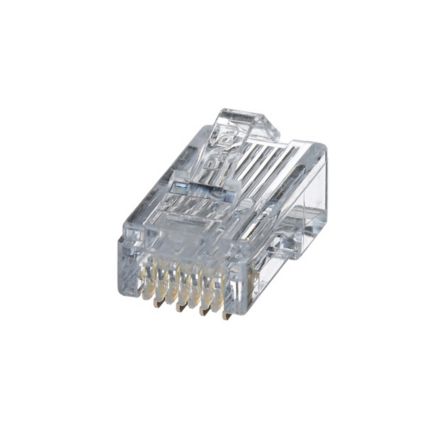

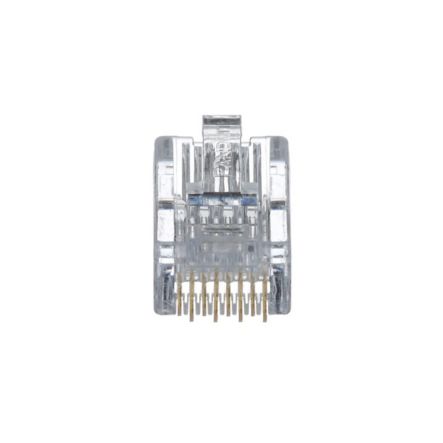

Panduit MP588-C | Pan-Plug Modular Plug, Category 5e, 24-26 AWG, 10...
Description
Description
Our reliable Cat 5e modular plug comes in bulk quantities, making connecting your network devices a breeze, featuring a tangle-free latch for easy use.
The Cat 5e modular plug terminates 4-pair, 24-26 AWG, 100 ohm, solid or stranded, unshielded twisted pair cable with maximum conductor insulation diameter of 0.040 inches (1.02mm). The modular plug has a robust construction that is rated to 2500 mating cycles. The patented tangle-free latch prevents snags and provides easy release. Simplified termination method shall require no load bar. Guide ramp shall facilitate easy conductor insertion and termination. This includes 100 per package.
Cat 5e/class D, 8-position, 8-wire, UTP modular plug shall terminate most 4-pair, 26 to 24 AWG, 100 Ohm, solid or stranded, unshielded twisted pair cable with maximum conductor insulation diameter of 0.04 in. Simplified termination method shall require no load bar. Guide ramp shall facilitate easy conductor insertion and termination. Modular plug shall terminate to T568A and T568B wiring schemes.
Panduit Pan-Plug Modular Plug, 1-Port 8-Position 8-Wire High Performance, UTP/T568A/B Connector, Copper Cable, 24 AWG Cable, Category: Cat 5e, Polycarbonate, Clear, 0.32 in H x 0.46 in W x 0.9 in D Dimensions
Panduit - MP588-C - Features
- Patented prevents snags and provides easy release, saving time and tangle-free latch providing reliability on frequent moves, adds and changes
- Robust construction rated to 2500 mating cycles
- Simplified termination requires no loading bar, guide ramp facilitates easy conductor insertion and termination
- Contacts plated with 50 u-in of gold for superior performance
- Terminate 24 AWG, 100 Ohm, stranded or solid conductor with maximum conductor insulation diameter of 0.04 in
- Meet all applicable ANSI/TIA/EIA-968-A requirements and exceeds IEC 60603-7 specifications
- Used in UTPCH series patch cords providing Category 5e performance
- Patented tangle free plug latch prevents snags and provides easy release saving time on frequent moves, adds, and changes
- Simplified termination requires no loading bar; guide ramp facilitates easy conductor insertion and termination
- Contacts plated with 50 microinches of gold
- Terminate 24 AWG, 100 ohm, stranded or solid conductor with max. conductor insulation diameter of .040"
Specifications
Specifications
Panduit - MP588-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MP588-C |
| Type | Mod Plug |
| UNSPSC Code | 43223300 |
| Product Type | Modular Plug |
| Performance Level | Category 5e |
| Connector Type | Modular Plug |
| Body Material | Plastic with Stamped Metal Shield |
| Contact Material | Gold Plated Phosphor Bronze |
| Number of Plugs | 100 |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Overall Length (In.) | 0.88 |
| Overall Length (mm) | 22.4 |
| Overall Width (In.) | 0.46 |
| Overall Width (mm) | 11.7 |
| Overall Height (In.) | 0.32 |
| Overall Height (mm) | 8.1 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Compatible Wire Gauge (AWG) | 26-24 |
| Color | Clear |
| Standards Met | Meet all applicable ANSI/TIA-968-A requirements and exceeds IEC 60603-7 specifications, Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS compliant |
| UPC | 07498374552 |
Panduit - MP588-C - Videos
| Panduit MP588-C Video 1 | Click to View |
|---|
