Brand: Panduit
|
SKU:
256980-EA

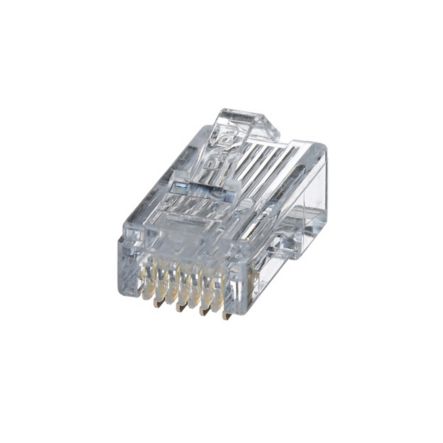

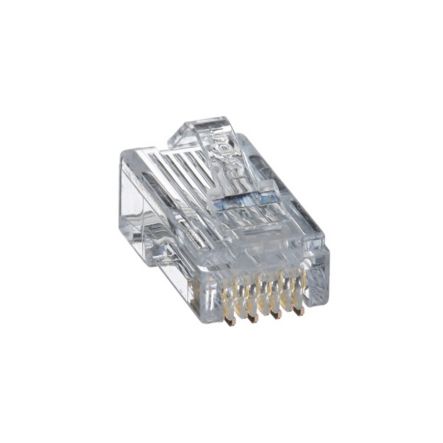

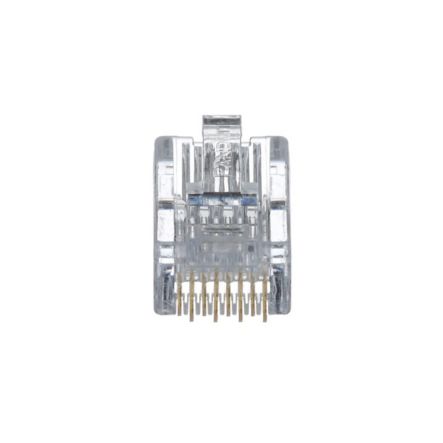

Panduit MP588-C | Pan-Plug Modular Plug, Category 5e, 24-26 AWG, 100 Pack
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit MP588-C | Pan-Plug Modular Plug, Category 5e, 24-26 AWG, 10...
Regular price
$1.46
Unit price
Description
Description
Panduit MP588-C | Pan-Plug Modular Plug, Category 5e, 24-26 AWG, 100 Pack
UTP modular plug, Cat. 5e, 24 AWG, 100 pk.
Panduit MP588-C - CONN MOD - MOD PLUG 8POS 8CON
Specifications
Specifications
Panduit - MP588-C - Product Categories
- Copper Systems
- Modular Plugs
Panduit - MP588-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MP588-C |
| Item Description | Pan-Plug Modular Plug, Category 5e, 24-26 AWG, 100 Pack |
| Product Type | UTP Modular Plug |
| Performance Level | Category 5e |
| Connector Type | Modular Plug |
| Body Material | Plastic with Stamped Metal Shield |
| Contact Material | Gold Plated Phosphor Bronze |
| Number of Plugs | 100 |
| Wiring Scheme | T568A/T568B |
| Overall Length (In.) | 0.88 |
| Overall Length (mm) | 22.4 |
| Shield Type | Unshielded (UTP) |
| Overall Width (In.) | 0.46 |
| Overall Width (mm) | 11.7 |
| Overall Height (In.) | 0.32 |
| Overall Height (mm) | 8.1 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Compatible Wire Gauge (AWG) | 24-26 |
| Color | Clear |
| Standards Met | Meet all applicable ANSI/TIA-968-A requirements and exceeds IEC 60603-7 specifications, Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS compliant |
| IP Rating | IP20 |
| Flammability Rating | UL94V-0 |
| Sub Brand | Pan-Plug |
Panduit - MP588-C - Package Information
| UPC | 07498374552 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0347 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.3474 |
Panduit - MP588-C - Videos
| Video 1 | Click to View |
|---|
