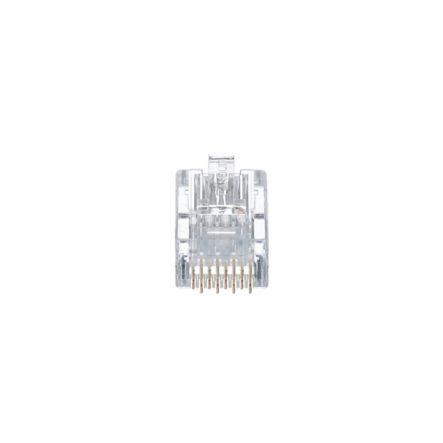

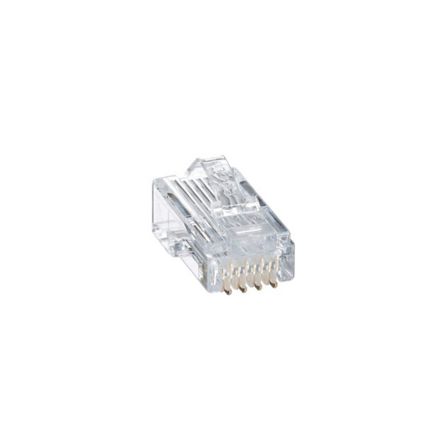

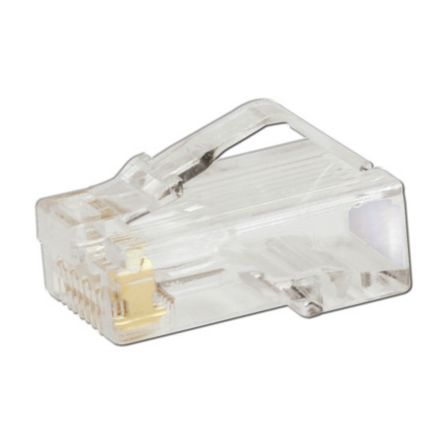

Panduit MP588-L 24 AWG, Category 5e, UTP Modular Plug, 50 Pack
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
195923-EA
Regular price
$1.46
Unit price
Description
Description
Panduit MP588-L | RJ45 Cat 5e UTP Modular Plug, 24-26 AWG
The Cat 5e modular plug terminates 4-pair, 24-26 AWG, 100 ohm, solid or stranded, unshielded twisted pair cable with maximum conductor insulation diameter of 0.040 inches (1.02mm). The modular plug has a robust construction that is rated to 2500 mating cycles. The patented tangle-free latch prevents snags and provides easy release. Simplified termination method shall require no load bar. Guide ramp shall facilitate easy conductor insertion and termination. This includes 1,000 per package.
Specifications
Specifications
Panduit - MP588-L - Product Categories
- Copper Systems
- Modular Plugs
Panduit - MP588-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MP588-L |
| Item Description | RJ45 Cat 5e UTP Modular Plug, 24-26 AWG |
| Product Type | UTP Modular Plug |
| Performance Level | Category 5e |
| Connector Type | Modular Plug |
| Body Material | Polycarbonate |
| Contact Material | Gold Plated Phosphor Bronze |
| Number of Plugs | 50 |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Overall Width (In.) | 0.46 |
| Overall Width (mm) | 11.7 |
| Overall Height (In.) | 0.32 |
| Overall Height (mm) | 8.1 |
| Overall Depth (In.) | 0.88 |
| Overall Depth (mm) | 22.4 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Compatible Wire Gauge (AWG) | 24-26 |
| Color | Clear |
| Standards Met | Meet all applicable ANSI/TIA-968-A requirements and exceeds IEC 60603-7 specifications, Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS compliant |
| IP Rating | IP20 |
| Flammability Rating | UL94V-0 |
| Sub Brand | Pan-Plug |
Panduit - MP588-L - Package Information
| UPC | 07498370967 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0288 |
| Standard. Ctn. Quantity | 250 |
| Standard. Ctn. Volume (cf) | 0.1441 |
Panduit - MP588-L - Videos
| Video 1 | Click to View |
|---|
