Brand: Panduit
|
SKU:
195921

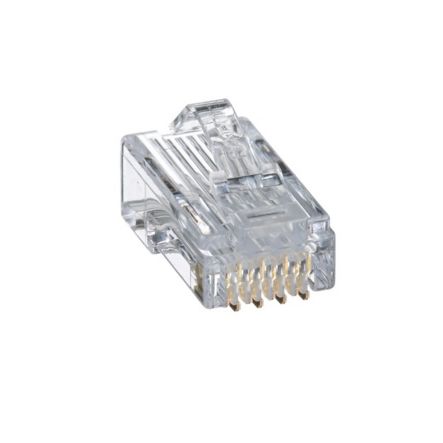

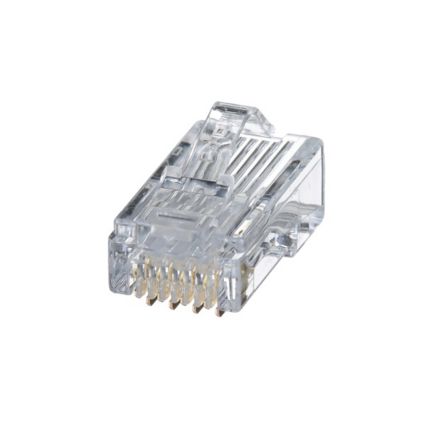

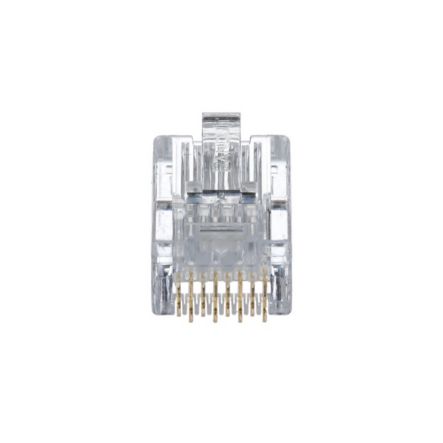

Panduit MP588-M | Pan-Plug Modular Plug, Category 5E, 24-26 Awg, 1000 Pack
Regular price
$990.16
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit MP588-M | Pan-Plug Modular Plug, Category 5E, 24-26 Awg, 10...
Regular price
$990.16
Unit price
Description
Description
Panduit MP588-M | Pan-Plug Modular Plug, Category 5E, 24-26 Awg, 1000 Pack
UTP modular plug, Cat. 5e, 24 AWG, 1000 pk.
Panduit - MP588-M - Features
- Meet all applicable ANSI/TIA/EIA-968-A requirements and exceeds IEC 60603-7 specifications
- Used in UTPCH series patch cords providing Category 5e performance
- Patented tangle free plug latch prevents snags and provides easy release saving time on frequent moves, adds, and changes
- Simplified termination requires no loading bar; guide ramp facilitates easy conductor insertion and termination
- Contacts plated with 50 microinches of gold
- Terminate 24 AWG, 100 ohm, stranded or solid conductor with max. conductor insulation diameter of .040";
Specifications
Specifications
Panduit - MP588-M - Product Categories
- Copper Systems
- Modular Plugs
Panduit - MP588-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MP588-M |
| Item Description | Pan-Plug Modular Plug, Category 5E, 24-26 Awg, 1000 Pack |
| Product Type | UTP Modular Plug |
| Performance Level | Category 5e |
| Connector Type | Modular Plug |
| Body Material | Polycarbonate |
| Contact Material | Gold Plated Phosphor Bronze |
| Number of Plugs | 1 |
| Wiring Scheme | T568A/T568B |
| Overall Length (In.) | 0.88 |
| Overall Length (mm) | 22.4 |
| Shield Type | Unshielded (UTP) |
| Overall Width (In.) | 0.46 |
| Overall Width (mm) | 11.7 |
| Overall Height (In.) | 0.32 |
| Overall Height (mm) | 8.1 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Compatible Wire Gauge (AWG) | 24-26 |
| Color | Clear |
| Standards Met | Meet all applicable ANSI/TIA-968-A requirements and exceeds IEC 60603-7 specifications, Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS compliant |
| IP Rating | IP20 |
| Flammability Rating | UL94V-0 |
| Sub Brand | Pan-Plug |
Panduit - MP588-M - Package Information
| UPC | 07498370968 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.2166 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 1.0828 |
Panduit - MP588-M - Videos
| Video 1 | Click to View |
|---|
