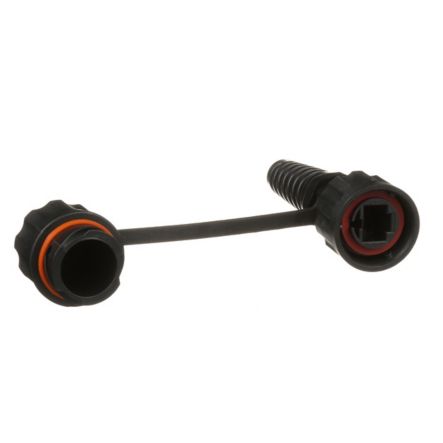

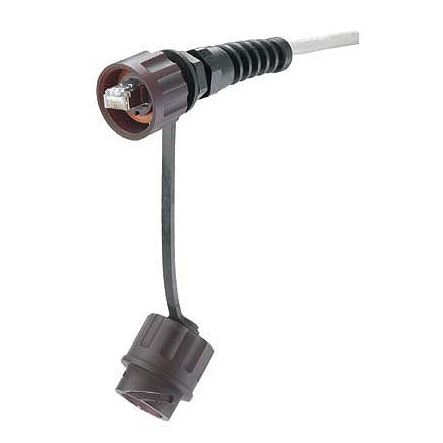

Panduit MPI588T 24 AWG, Category 5e, UTP Modular Plug With Bulkhead
Regular price
$105.74
Unit price
Brand: Panduit
|
SKU:
279146
Regular price
$105.74
Unit price
Description
Description
Panduit MPI588T | Cat 5e, 24 AWG, Modular Plug
The IndustrialNet Cat 5e Modular Plug is 8-position, 8-wire. The plug terminates Cat 5e, industrial grade, 24 AWG, UTP copper cable. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. Secondary seals on both the connector and plug provide additional protection.
Panduit - MPI588T - Features
- Bulkhead provides IP67/IP65 seal when mated with IP67/IP65 connector or coupler
- Exceed ANSI/TIA/EIA-568-C.2 Category 5e and ISO 11801 2nd Edition Class D standards
- Terminate 24 gauge, stranded or solid conductor with maximum conductor insulation diameter of .040";
- Gasket and seal made of inert, chemically resistant material
- Connector components are made of high temperature rated material
- Tethered caps maintain seal during unmated connection
- Compatible with leading switch manufacturers’; equipment
Specifications
Specifications
Panduit - MPI588T - Product Categories
- Copper Systems
- Industrial Copper Connectors
Panduit - MPI588T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MPI588T |
| Item Description | Cat 5e, 24 AWG, Modular Plug |
| Product Type | Industrial Copper Connectors |
| Performance Level | Category 5e |
| Connector Type | Modular Plug |
| Contact Material | Phosphor Bronze Plated with Gold |
| Number of Plugs | 1 |
| Wiring Scheme | T568A/T568B |
| Overall Length (In.) | 3.76 |
| Overall Length (mm) | 96 |
| Shield Type | Unshielded (UTP) |
| Overall Width (In.) | 1.18 |
| Overall Width (mm) | 30 |
| Overall Height (In.) | 5.22 |
| Overall Height (mm) | 132.5 |
| Overall Depth (In.) | 3.76 |
| Overall Depth (mm) | 95.6 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Compatible Wire Gauge (AWG) | 24 |
| Color | Black |
| Standards Met | Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO11801 Class D standards at swept frequencies 1 to 100 MHz, Meets all ODVA Ethernet/IP |
| electrical and mechanical performance requirements, Protects and seals connections against dust and water immersion to ANSI/IEC 60529-2004Meets ANSI/TIA-1096-A; contacts plated with 50 microinches of gold for superior performance, Plug meets IEC 60603-7 specifications, Rated IP67/68 for dust protection and temporary liquid immersion, Rated UL Type 12, 6/6P, 4X | IP Rating |
| IP67 | NEMA Rating |
| 12 | Flammability Rating |
| UL94V-0 | Sub Brand |
Panduit - MPI588T - Package Information
| UPC | 07498342193 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0161 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.1606 |
