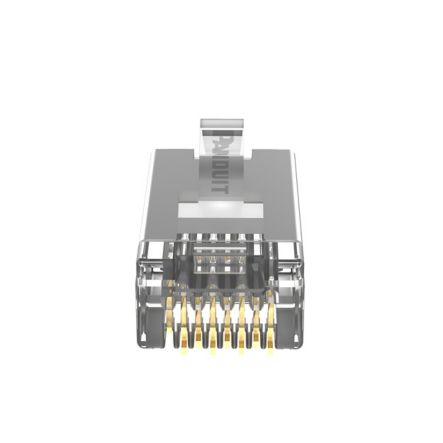

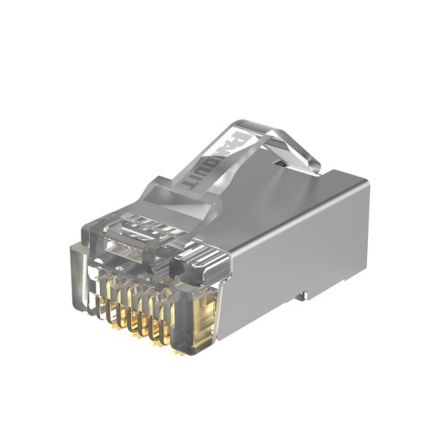

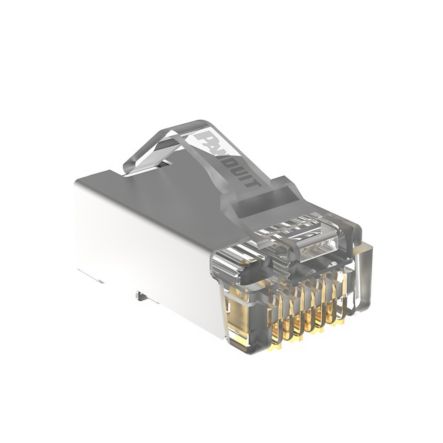

Panduit MPS588-C | 24-26 AWG, Category 5e, Shielded Modular Plug
Regular price
$4.06
Unit price
Brand: Panduit
|
SKU:
355197
Regular price
$4.06
Unit price
Description
Description
Panduit MPS588-C | Pan-Plug Modular Plug, Category 5e, 24-26 AWG, Shielded, 100 Pack
STP modular plug, Cat. 5e, 24-26 AWG, 100 pk.
Panduit - MPS588-C - Features
- Meets all applicable ANSI/TIA/EIA-968-A requirements and exceeds IEC 60603-7 specifications
- Used in STPCH series patch cords providing Category 5e performance
- Patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes
- Simplified termination requires no loading bar, guide ramp facilitates easy conductor insertion and termination
- Contacts plated with 50 microinches of gold for superior performance
- Shielded plug housing provides conductive path for grounding
- Terminates 24 - 26 AWG 100 ohm stranded or solid shielded cable with max. conductor insulation diameter of .040";
Specifications
Specifications
Panduit - MPS588-C - Product Categories
- Copper Systems
- Modular Plugs
Panduit - MPS588-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MPS588-C |
| Item Description | Pan-Plug Modular Plug, Category 5e, 24-26 AWG, Shielded, 100 Pack |
| Product Type | STP Modular Plug |
| Performance Level | Category 5e |
| Connector Type | Modular Plug |
| Body Material | Plastic with Stamped Metal Shield |
| Contact Material | Gold Plated Phosphor Bronze |
| Number of Plugs | 100 |
| Wiring Scheme | T568A/T568B |
| Overall Length (In.) | 0.89 |
| Overall Length (mm) | 22.5 |
| Shield Type | Shielded (STP) |
| Overall Width (In.) | 0.46 |
| Overall Width (mm) | 11.7 |
| Overall Height (In.) | 0.32 |
| Overall Height (mm) | 8.1 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Compatible Wire Gauge (AWG) | 24-26 |
| Color | Clear |
| Standards Met | Meets all applicable ANSI/TIA-968-A requirements and exceeds IEC 60603-7 specifications, Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications |
| IP Rating | IP20 |
| Flammability Rating | UL94V-0 |
| Sub Brand | Pan-Plug |
Panduit - MPS588-C - Package Information
| UPC | 07498383210 |
|---|---|
| Standard Pkg. Qty. | 100 |
| Standard Package Volume (cf) | 0.0474 |
| Standard Ctn. Qty. | 1000 |
| Standard Ctn. Volume (cf) | 0.4742 |
Panduit - MPS588-C - Videos
| Video 1 | Click to View |
|---|
