Panduit MTP1S-E6-C | Multiple Cable Tie Plate
Description
Description

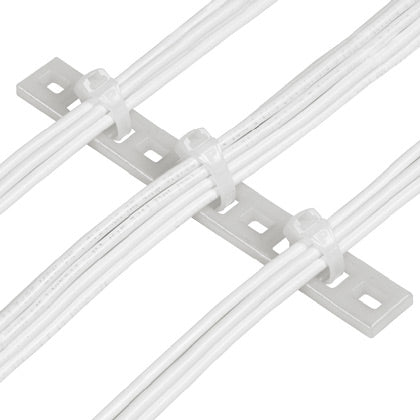

The multiple tie plate in natural color supports one bundle and is used with miniature, intermediate, and standard cable ties. It uses #6 (M3) screws and is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness . It is designed for indoor environments and comes in packages of 100.
Panduit Multiple Tie Plate, Standard Cross Section, Series: MTP, Threaded Mounting, 1-3/4 in Base Length, 1/2 in Base Width, Nylon 6.6, Natural
Our low-profile tie plates securely fasten closely spaced bundles, ideal for tight spaces and areas with limited overhead room, accommodates a wide range of cable ties, from miniature to heavy-duty.
Panduit - MTP1S-E6-C - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
- Used to secure closely spaced wire bundles
- Low profile design keeps bundle close to mounting surface
- The multiple tie plate in natural color supports one bundle and is used with miniature, intermediate, standard heavy standard light heavy and heavy cable ties
Specifications
Specifications
Panduit - MTP1S-E6-C - Specifications
| UNSPSC Code | 39121703 |
|---|---|
| Product Type | Cable Tie Mount |
| Application | Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #6 |
| Overall Length (In.) | 1.75 |
| Overall Length (mm) | 44.4 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 12.7 |
| Overall Height (In.) | 0.125 |
| Overall Height (mm) | 3.2 |
| Standards Met | cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant |
| UPC | 07498358427 |
Panduit - MTP1S-E6-C - Package Information
| UPC | 07498358427 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0270 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.2695 |
Panduit - MTP1S-E6-C - Videos
| Panduit MTP1S-E6-C Videos | Click to View |
|---|
