Panduit MTP3H-E10-C | Multiple Cable Tie Plate
Regular price
$6.82
Unit price
Brand: Panduit
|
SKU:
CMCMRSM300NA007
Regular price
$6.82
Unit price
Description
Description

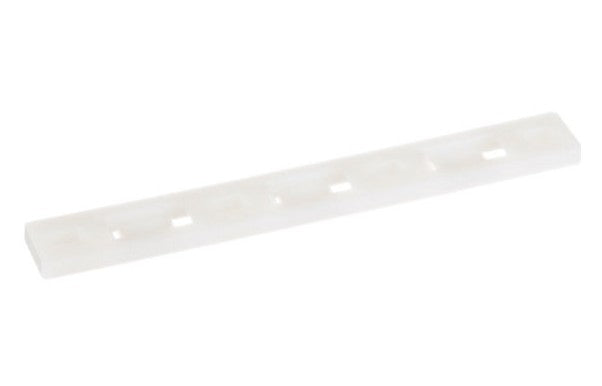

Panduit MTP3H-E10-C | Multiple Cable Tie Plate
Our low-profile tie plates securely fasten closely spaced bundles, ideal for tight spaces and areas with limited overhead room, accommodates a wide range of cable ties, from miniature to heavy-duty.
Specifications
Specifications
Panduit - MTP3H-E10-C - Specifications
| Product Type | Cable Tie Mount |
|---|---|
| Application | Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #10 |
| Overall Length (In.) | 5.09 |
