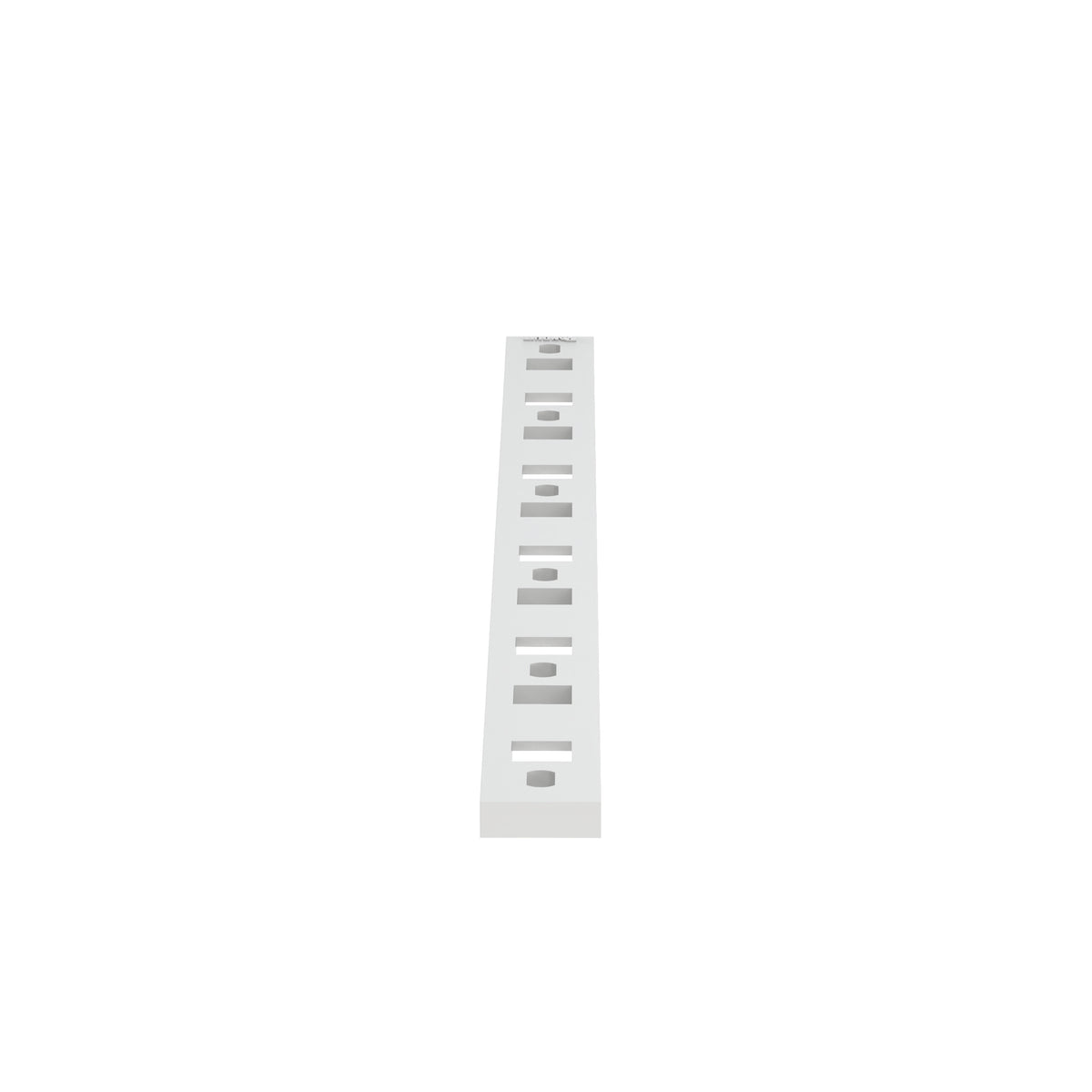

Panduit MTP5H-E6-C | Multiple Cable Tie Plate
Description
Description
Panduits MTP5H-E6-C Multiple Tie Plates are designed to secure bundles that are closely spaced. With their low profile design, bundles stay close to mounting surface making them ideal for areas where overhead space is limited. These mounts can be used with miniature through heavy cable ties and are intended for use in indoor environments. Supports five bundles and uses #6 (M3) screws. Made of Nylon 6.6, are natural in color and come in packages of 100.
Panduit Cable Tie Plate, Multiple, Series: MTP, Threaded Mounting, 0.22 in Maximum Tie Width, 8.09 in Base Length, 0.63 in Base Width, Nylon 6.6, Natural
Our low-profile tie plates securely fasten closely spaced bundles, ideal for tight spaces and areas with limited overhead room, accommodates a wide range of cable ties, from miniature to heavy-duty.
Panduit - MTP5H-E6-C - Features
- Minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation cost
- Used to secure closely spaced wire bundles
- Low profile design keeps bundle close to mounting surface
- It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance and stiffness
- The multiple tie plate in natural color supports five bundles
Specifications
Specifications
Panduit - MTP5H-E6-C - Specifications
| UNSPSC Code | 39121703 |
|---|---|
| Product Type | Cable Tie Mount |
| Application | Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #6 |
| Overall Length (In.) | 8.09 |
| Overall Length (mm) | 205.5 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 7.5 |
| Overall Height (mm) | 190.5 |
| Standards Met | UL Recognized: E136577,CE Compliant, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard, Light Heavy, Heavy Cross-Section Ties |
| UPC | 07498358445 |
Panduit - MTP5H-E6-C - Package Information
| UPC | 07498358445 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.1285 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 1.2851 |
Panduit - MTP5H-E6-C - Videos
| Panduit MTP5H-E6-C Videos | Click to View |
|---|
