Panduit MTP5S-E6-C | Multiple Cable Tie Plate
Description
Description

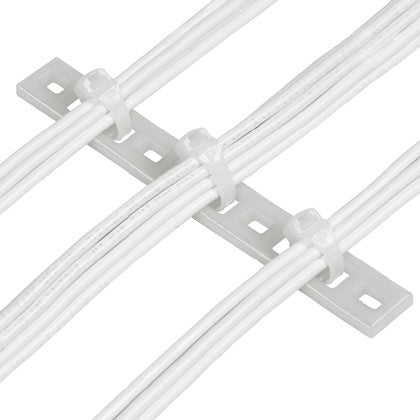

The multiple tie plate in natural color supports five bundles and is used with miniature, intermediate, and standard cable ties. It uses #6 (M3) screws and is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffne ss. It is designed for indoor environments and comes in packages of 100.
Panduit Cable Tie Plate, Multiple Standard, Series: MTP, Threaded Mounting, 0.22 in Maximum Tie Width, 6-3/4 in Base Length, 1/2 in Base Width, Nylon 6.6, Natural
Our low-profile tie plates securely fasten closely spaced bundles, ideal for tight spaces and areas with limited overhead room, accommodates a wide range of cable ties, from miniature to heavy-duty.
Panduit - MTP5S-E6-C - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
- Used to secure closely spaced wire bundles
- Low profile design keeps bundle close to mounting surface
- It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance and stiffness
- The multiple tie plate in natural color supports five bundles
Specifications
Specifications
Panduit - MTP5S-E6-C - Specifications
| UNSPSC Code | 39121703 |
|---|---|
| Product Type | Cable Tie Mount |
| Application | Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #6 |
| Overall Length (In.) | 6.75 |
| Overall Length (mm) | 171.4 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 12.7 |
| Overall Height (In.) | 0.125 |
| Overall Height (mm) | 3.2 |
| Standards Met | cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant |
| UPC | 07498358443 |
Panduit - MTP5S-E6-C - Package Information
| UPC | 07498358443 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0705 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.7051 |
Panduit - MTP5S-E6-C - Videos
| Panduit MTP5S-E6-C Videos | Click to View |
|---|
