Panduit MTPC1H-E10-C39 | Cable Tie Mount | UPC - 07498300829

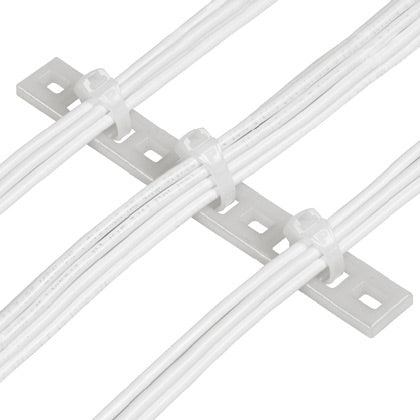

The rounded edge multiple tie plate in natural color supports one bundle and is used with miniature, intermediate, standard, heavy-standard, light-heavy, and heavy cable ties. It uses #10 (M5) screws and is made of heat-stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is designed for indoor environments and comes in packages of 100.

---

Panduit Panduit MTPC1H-E10-C39 | Cable Tie Mount | UPC - 07498300829 Key Specs

Application	Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles
Product Type	Cable Tie Mount
Color	Natural
Flammability Rating	UL94V-2
Environment	Indoor
Material	Heat Stabilized Nylon 6.6
Maximum Operating Temperature (°C)	115
Maximum Operating Temperature (°F)	239
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Mount Method	Screw
Mounting Hole Thread Size	#10
Overall Height (In.)	0.2
Overall Height (mm)	5.1
Overall Length (In.)	2.09
Overall Length (mm)	53.1
Overall Width (In.)	0.62
Overall Width (mm)	15.7
Standards Met	RoHS Compliant
