Panduit MTPC2H-E10-C39 | Contour Multiple Tie Plate
Description
Description

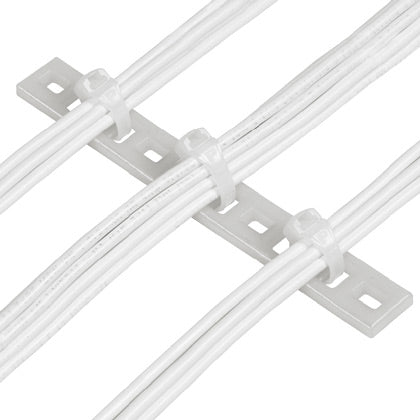

The rounded edge multiple tie plate in natural color supports two bundles and is used with miniature, intermediate, standard, heavy-standard, light-heavy, and heavy cable ties. It uses #10 (M5) screws and is made of heat-stabilized nylon 6.6, which inc reases mechanical strength, heat and wear resistance, and stiffness. It is designed for indoor environments and comes in packages of 100.
Panduit Cable Tie Plate, Rounded Edge Multiple, Series: MTP, Threaded Mounting, 0.3 in Maximum Tie Width, 3.59 in Base Length, 0.63 in Base Width, Nylon 6.6, Natural
Organize up to four cable bundles with our robust, heat-resistant contour tie plate. It offers dependable performance and easy installation for indoor use.
Panduit - MTPC2H-E10-C39 - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
- The rounded edge multiple tie plate in natural color supports 2 bundles
- It is made of heat stabilized nylon 6.6, which increases mechanical strength, heat, wear resistance and stiffness
- #10 (M5) screw
Specifications
Specifications
Panduit - MTPC2H-E10-C39 - Specifications
| UNSPSC Code | 39121703 |
|---|---|
| Product Type | Cable Tie Mount |
| Application | Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Material Properties | Heat-Stabilized |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #10 |
| Overall Length (In.) | 3.59 |
| Overall Length (mm) | 91.2 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.8 |
| Overall Height (In.) | 0.2 |
| Overall Height (mm) | 5.1 |
| Standards Met | RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard, Light-Heavy Cross-Section Ties |
| UPC | 07498300830 |
Panduit - MTPC2H-E10-C39 - Package Information
| UPC | 07498300830 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0705 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.7051 |
Panduit - MTPC2H-E10-C39 - Videos
| Panduit MTPC2H-E10-C39 Videos | Click to View |
|---|
