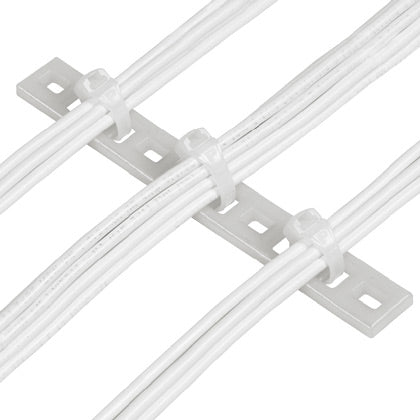

Panduit MTPC7H-E10-C39 | Contour Multiple Tie Plate
Description
Description
The rounded edge multiple tie plate in natural color supports seven bundles and is used with miniature, intermediate, standard, heavy-standard, light-heavy, and heavy cable ties. It uses #10 (M5) screws and is made of heat-stabilized nylon 6.6, which i ncreases mechanical strength, heat and wear resistance, and stiffness. It is designed for indoor environments and comes in packages of 100.
Panduit Tie Plate, 7-Bundle Round Edge Heat Stabilized, 11.09 in Length, 0.62 in Width, 0.2 in Thickness, Nylon 6.6, Natural
Organize up to four cable bundles with our robust, heat-resistant contour tie plate. It offers dependable performance and easy installation for indoor use.
Panduit - MTPC7H-E10-C39 - Features
- Minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation cost
- The rounded edge multiple tie plate in natural color supports one bundle and is used with miniature, intermediate, standard, heavy standard, light heavy and heavy cable ties
- It uses #10 (M5) screws and is made of heat stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance and stiffness
Specifications
Specifications
Panduit - MTPC7H-E10-C39 - Specifications
| UNSPSC Code | 39121703 |
|---|---|
| Product Type | Cable Tie Mount |
| Application | Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Material Properties | Heat-Stabilized |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #10 |
| Overall Length (In.) | 11.09 |
| Overall Length (mm) | 281.7 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.8 |
| Overall Height (In.) | 0.2 |
| Overall Height (mm) | 5.1 |
| Standards Met | RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard, Light-Heavy Cross-Section Ties |
| UPC | 07498310888 |
Panduit - MTPC7H-E10-C39 - Package Information
| UPC | 07498310888 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.1720 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.8599 |
Panduit - MTPC7H-E10-C39 - Videos
| Panduit MTPC7H-E10-C39 Videos | Click to View |
|---|
