Panduit N100X075CBT | Vinyl Thermal Transfer Cloth Wire Marker Label
Description
Description
The N100X075CBT Thermal Transfer Non-Laminated Label is constructed of a thin and comformable material with repositionable adhesive that allows the label to be removed and resued in temporary applications. Works well on Teflon coated wires. For use wit h TDP printers. Compatible with Easy-Mark Plus Labeling Software. Vinyl Cloth. 1" x 0.75" (25.4 mm x 19.1 mm). Cable diameter 0.12" - 0.16" (3.1 mm - 4.1 mm) Color White. 10,000 labels per roll.
Panduit Non-laminated Label, 1 in Length, 3/4 in Width, BLANK Legend, White, Vinyl, For Use With: Cable/Wire Marking, Thermal Transfer Printer

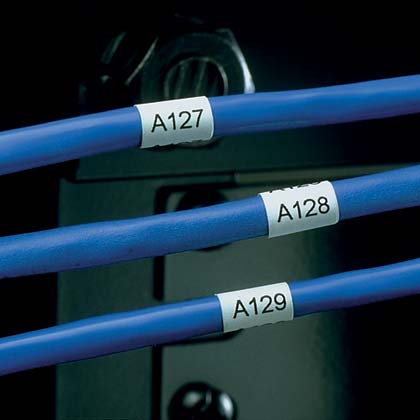

Our vinyl thermal transfer cloth wire marker label offers reusable, flexible labeling that conforms to wires and cables for easy identification while securely attaching to various surfaces.
Panduit - N100X075CBT - Features
- Offers crisp, clear legends with superior legibility
- Used in flat applications and in a wrap format for wire/ cable marking
- Use thermal transfer resin ribbon
- Panduit labeling software packages include all label formats for quick and easy label production
- Use as a wrap around label or flag style labels for wire/cable labeling
Specifications
Specifications
Panduit - N100X075CBT - Specifications
| Label Types | Cloth |
|---|---|
| UNSPSC Code | 55120000 |
| Note | For use with TDP printers. |
| Label Dimensions (In.) | 1W x 0.75H |
| Product Type | Non-Laminating Label |
| Color | White |
| Material | Vinyl Cloth |
| Printer Type | Thermal Transfer |
| Standards Met | UL969 recognized, File # MH14576 and MH14979; cUL recognized, C22.2 No. 0.15.01, File # MH14576; RoHS Compliant |
| Compatible Wire Gauge (AWG) | 12-10 |
| Maximum Cable Diameter (In.) | 0.16 |
| Maximum Cable Diameter (mm) | 4.1 |
| Minimum Cable Diameter (In.) | 0.12 |
| Minimum Cable Diameter (mm) | 3.1 |
| Number of Labels per Roll | 10000 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Overall Height (In.) | 0.75 |
| Overall Height (mm) | 19.1 |
| Label Application | Cable & Wire Marking |
| Label Property | Repositionable |
| UPC | 07498356985 |
Panduit - N100X075CBT - Package Information
| UPC | 07498356985 |
|---|---|
| Standard Packaging Quantity | 10000 |
| Standard Packaging Volume (cf) | 0.7051 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
