Panduit N8212WC | 42RU, 800x1070, N-Type, D, S, CM, CgNut, WH, EA
Description
Description

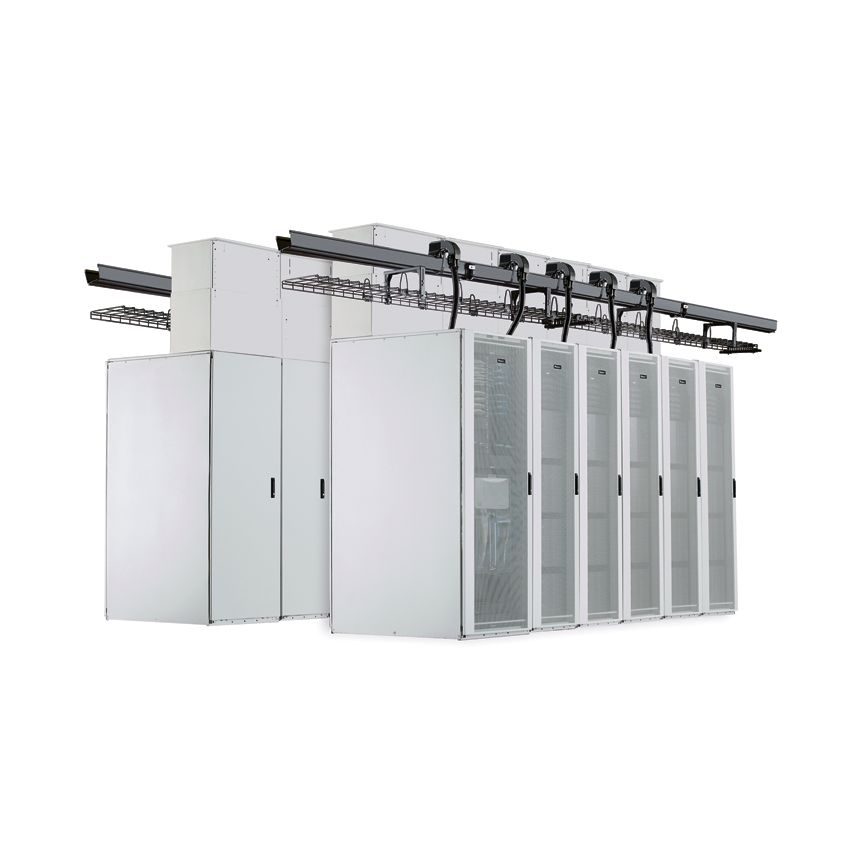

Maximize your network efficiency with the N-type cabinet. Featuring dual-hinged doors, solid side panels, and integrated cable management, it ensures secure and organized equipment storage.
Net-Access Type-N cabinets are the first choice for data center managers and systems integrators specifying high density network, storage and compute applications that require optimal thermal management and the capacity to manage high cable densities. Integral cabinet air seal features and integration with passive hot and cold air containment components drive efficient utilization of cooling capacity and reduce cooling energy consumption. The Net-Access inset frame design efficiently manages large quantities of cables and provides space for unmatched access reducing operational costs. This industry leading design also maximizes airflow and provides easy access to equipment for ongoing operational efficiencies, providing exceptional value in a 800 mm (31-1/2 in) wide enclosure.
Panduit Net-Access Enclosure Cabinet, Type N Configurable, Series: N Series, 31.49 in Width, 42.12 in D, 42U Rack Unit, Lock: Keyed Swing Handle, (2) 6-1/2 in Knockout Cable Entry, 3000 lb Static/2500 lb Rolling Capacity, Floor Mount, 50 deg C, Steel, Powder Coated, White
Panduit - N8212WC - Features
- Wide range of cabinet designs available for specific thermal applications, resulting in improved thermal efficiencies and reductions in energy expenditures
- Integral cabinet sealing features reduce bypass air and mixing of cold air and exhaust air within the cabinet for improved
- Panduit cabinets, thermal ducting, cool boot product, blanking panels, blanking foam strips and blanking shade provide a complete thermal and sealing solution
- Creates a 203 mm unobstructed channel between cabinets promoting best in class cable management, provides flexibility for switch specific thermal solutions
- Innovative dual hinge door with slam latch handles provides superior access to cabinets and cabling, easing cabinet to cabinet cabling and promoting faster moves, adds and changes
- N-Type cabinets can be ganged together for complete streamlined appearance improving data center aesthetics
- Cable management included helps speed deployment, easily adjustable rear rails can be quickly repositioned, heavy duty leveling legs can be accessed from top or bottom for faster deployment
- Fulfills Cisco switch side clearance requirements for increased network reliability and proper thermal management
- Cabinets and accessories are single point bonded, providing a safe and reliable network while reducing installation costs
- Provides bend radius control for each rack unit and can be positioned where required on cabinet posts for cable protection for increased network availability, provides design flexibility, scalability and improved aesthetics for easier moves, adds and changes
- Multiple cabinet configurations for hot aisle/cold aisle, cold aisle containment or vertical exhaust ducting deployments
- Provides optimal and discreet channels for managing and protecting cables contributing to increased network availability
- Cabinets are powder coated in a durable, low maintenance polyester epoxy paint
Specifications
Specifications
Panduit - N8212WC - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | N8212WC |
| Sub Brand | Net-Access |
| Product Type | N-Type Cabinet |
| Rear Door Type | Door Split Hinged |
| Front Door Type | Door Dual Hinged |
| Color | White |
| Material | Steel |
| Overall Depth (In.) | 42 |
| Overall Width (In.) | 31.5 |
| Overall Width (mm) | 800 |
| Overall Height (In.) | 78.8 |
| Overall Height (mm) | 2000 |
| Number of Rack Units | 42 |
| Casters | No |
| Static Load Capacity (kg) | 1360 |
| Static Load Capacity (lb) | 3000 |
| Rolling Load Capacity (kg) | 1133 |
| Rolling Load Capacity (lb) | 2500 |
| Finish/Coating | Powder-Coated |
| Standards Met | EIA-310-E, TIA/EIA-942, UL Listed 2416, RoHS Compliant |
| NEMA Rating | 1 |
| UPC | 07498395712 |
Panduit - N8212WC - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
