Panduit N8822WC | Net-Access N-Type Cabinet
Regular price
$9,652.60
Unit price
Brand: Panduit
|
SKU:
683054
Regular price
$9,652.60
Unit price
Description
Description

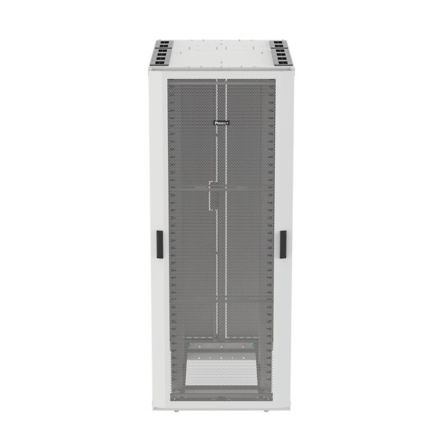

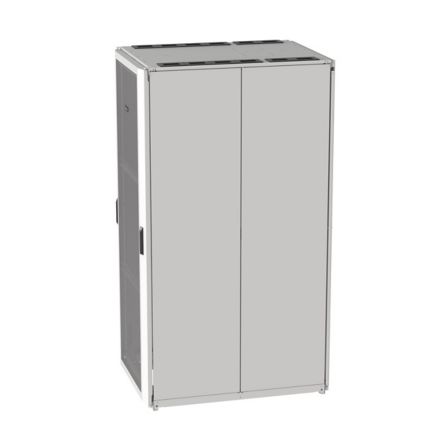

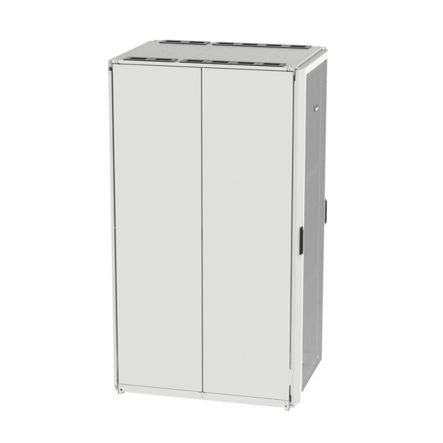

Panduit N8822WC | Net-Access N-Type Cabinet
The Net-Access N-Type Cabinet is a 48 RU, 800mm W x 1200mm D cabinet with top panel. The dual hinge perforated front door opens to the left or right and the rear door is split perforated. It includes two solid side panels, two sets of cage nut equipment mounting rails and 48 RU cable management on front and rear of front posts. The cabinet is 88.5" H x 31.5" W x 48" D. It is white.
Panduit N8822WC 800mmw X 48 RU X 1219mmd N Type, Doors, No Sides, CM, Cage Nut, WH
Specifications
Specifications
Panduit - N8822WC - Product Categories
- Cabinets, Thermal Management, Racks and Enclosures
- Cabinets
Panduit - N8822WC - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | N8822WC |
| Item Description | Net-Access N-Type Cabinet |
| Sub Brand | Net-Access |
| Product Type | N-Type Cabinet |
| Rear Door Type | Door Split Hinged |
| Front Door Type | Door Dual Hinged |
| Material | Steel |
| Color | White |
| Overall Width (In.) | 31.5 |
| Overall Width (mm) | 800 |
| Overall Depth (In.) | 48 |
| Overall Depth (mm) | 1200 |
| Overall Height (In.) | 89.3 |
| Overall Height (mm) | 2.267 |
| Number of Rack Units | 48 |
| Casters | No |
| Static Load Capacity (kg) | 1.36 |
| Static Load Capacity (lb) | 3 |
| Rolling Load Capacity (kg) | 1.133 |
| Rolling Load Capacity (lb) | 2.5 |
| Finish/Coating | Powder-Coated |
| Standards Met | EIA-310-E, TIA/EIA-942, UL Listed 2416, RoHS Compliant |
| NEMA Rating | 1 |
Panduit - N8822WC - Package Information
| UPC | 07498395749 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 128.4809 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
