Brand: Panduit
|
SKU:
NC.5WH6

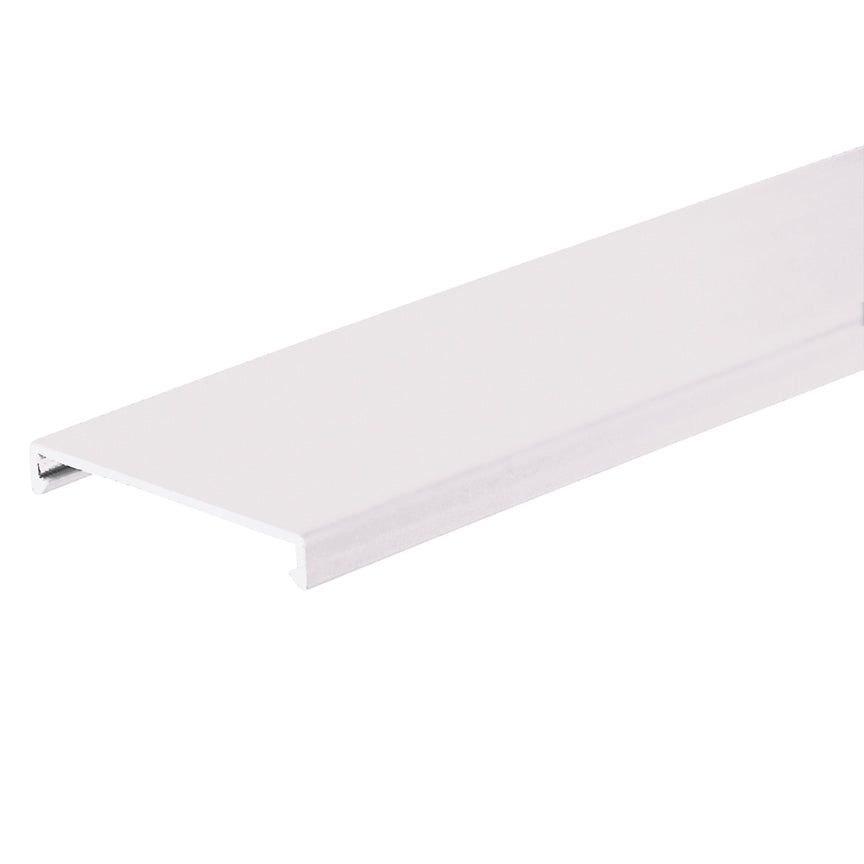

Panduit NC.5WH6 | Type NC Halogen Free Wiring Duct Cover | UPC - 07498323143
Regular price
$23.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit NC.5WH6 | Type NC Halogen Free Wiring Duct Cover | UPC - 07...
Regular price
$23.72
Unit price
Description
Description
Panduit Panduct Wiring Duct Cover, Type NC Halogen-Free, 6 ft Length, 0.69 in W, 0.19 in Height, Snap-On Mount, For Use With: Panduit Type NE.5X and NS.5X Duct, Polyphenylene Oxide, White
Features + Benefits
- Dual sided hinged cover opens up to 100 deg from either sidewall of duct
- Integrated hinged cover design allows easy access to wiring without hassle of removing and reinstalling cover
- Cover retention flanges prevent cover from sliding when installed on duct base
- Double shoreline saves installation time and lowers installed cost
- Restricted slot design retains wire in slot for fast, easy wire installation or removal
Panduit NC.5WH6 | Type NC Halogen Free Wiring Duct Cover | UPC - 07498323143 Key Specs
| Application | Cover for Wiring Duct |
| Product Type | Type NC Halogen Free Wiring Duct Cover |
| Sub Brand | Panduct |
| Color | White |
| Material | Halogen-Free PPO |
| Standards Met | UL Recognised; Flammability Ratings: UL94 V-0; CE Compliant; RoHS Compliant |
| Compatible Duct Width (In.) | 0.5 |
| Compatible Duct Width (mm) | 12.7 |
| Overall Height (In.) | 0.19 |
| Overall Height (mm) | 4.8 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 0.69 |
| Overall Width (mm) | 17.5 |
| Part Features | Halogen-Free Cover with non-slip liner to prevent cover slide. Designed for easy install and removal. |
Panduit NC.5WH6 | Type NC Halogen Free Wiring Duct Cover | UPC - 07498323143 Data Sheets
| Part Drawings | NE and NS Cover customer Drawing | Download and View |
| Selection Guides | Wiring Duct Product Selection Guide | Download and View |
| Technical References | Chemical Resistance Information | Download and View |
Panduit NC.5WH6 | Type NC Halogen Free Wiring Duct Cover | UPC - 07498323143 Environmental Information
| Panduit's RoHS Statement | Download and View |
