Panduit NC1WH6 Covers duct to protect wires, improve aesthetics and...
Description
Description

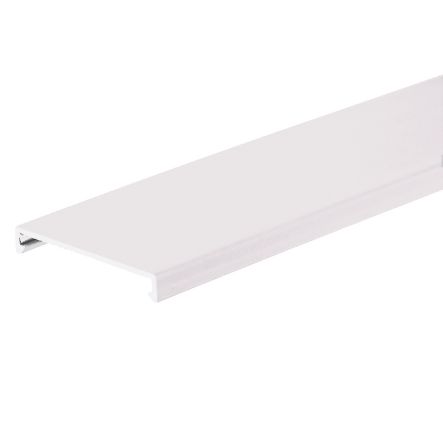

The NC1WH6 Halogen-Free Wiring Duct Cover features a non-slip liner to prevent cover slide. Designed with the user in mind, the cover is easy to install and remove. A special-purpose material is for use in halogen-free or high-temperature applications. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95°C (203°F). Halogen-Free, Polyphenylene Oxide (PPO). 0.35" x 1.25" (8.9 mm x 31.8 mm) and 6' (1.83 m) long. Color White. 6 per package.
Panduit - NC1WH6 - Features
- Choose from 7 sizes of PANDUIT Halogen-Free Covers from 0.5"; up to 4";. The halogen free material allows the duct to be used in higher temperature environments, to 203F (95C), and low temperature environments, to -40F (-40C). The non-slip cover keeps all wiring in place and is easy to install.
- Made of halogen-free material
- UL94 Flammability Rating of V-1
- Halogen free material is ideal for applications where public safety during a fire is a concern
- Non-slip cover stays in place during shipment, vibration and when in a vertical orientation, eliminating rework DO NOT allow cutting, tapping or cleaning fluids that contain hydrocarbons to come in contact with Type NE Wiring Duct as it will cause stress cracking.
Specifications
Specifications
Panduit - NC1WH6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - NC1WH6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NC1WH6 |
| Item Description | Panduct NC1WH6 Flush Cover, White, Hal-Free PPO, 0.35"x1.25", PK6 |
| Application | Cover for Wiring Duct |
| Note | Base and Cover Sold Separately. |
| Product Type | Flushed Duct Cover |
| Sub Brand | Panduct |
| Color | White |
| For Use With | Type NE Halogen-Free Wiring Duct |
| Material | Halogen-Free PPO |
| Standards Met | UL Recognized; Flammability Ratings: UL94 V-0; CE Compliant; CSA Certified; RoHS Compliant; Halogen Free; Conforms to NFPA 79-2015 section 13.3.1; meets a Hazard Level Classification of HL1 per European Standard EN45545-2 for R23 (exterior) |
| Compatible Duct Width (In.) | 1 |
| Compatible Duct Width (mm) | 25.4 |
| Overall Height (In.) | 0.35 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.25 |
| Overall Width (mm) | 31.8 |
| Mount Method | Snap-on |
| Wiring Duct Style | Flush Cover |
| Part Features | Halogen-Free Cover with non-slip liner to prevent cover slide. Designed for easy install and removal. |
Panduit - NC1WH6 - Package Information
| UPC | 07498323149 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.0213 |
| Standard. Ctn. Quantity | 120 |
| Standard. Ctn. Volume (cf) | 0.4264 |
