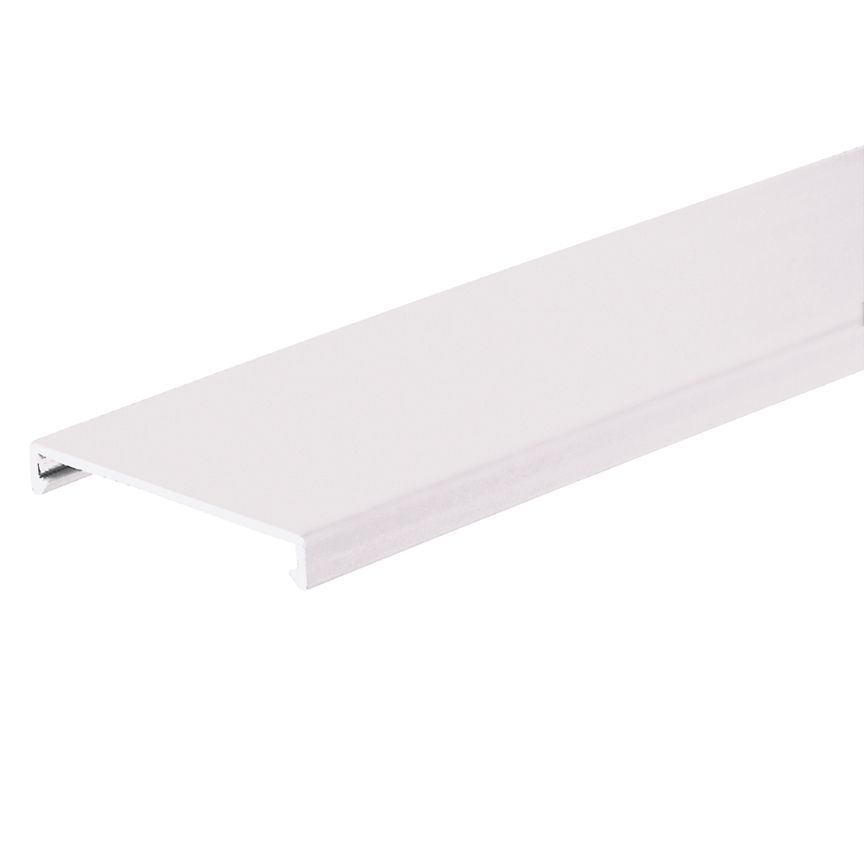

Panduit NC1WH6 | Panduct NC1WH6 Flush Cover, White, Hal-Free PPO, 0.35"x1.25", PK6
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit NC1WH6 | Panduct NC1WH6 Flush Cover, White, Hal-Free PPO, 0...
Description
Description
The NC1WH6 Halogen-Free Wiring Duct Cover features a non-slip liner to prevent cover slide. Designed with the user in mind, the cover is easy to install and remove. A special-purpose material is for use in halogen-free or high-temperature applications. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95°C (203°F). Halogen-Free, Polyphenylene Oxide (PPO). 0.35" x 1.25" (8.9 mm x 31.8 mm) and 6' (1.83 m) long. Color White. 6 per package.
Specifications
Specifications
Panduit - NC1WH6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - NC1WH6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NC1WH6 |
| Item Description | Panduct NC1WH6 Flush Cover, White, Hal-Free PPO, 0.35"x1.25", PK6 |
| Application | Cover for Wiring Duct |
| Note | Base and Cover Sold Separately. |
| Product Type | Flushed Duct Cover |
| Sub Brand | Panduct |
| Color | White |
| For Use With | Type NE Halogen-Free Wiring Duct |
| Material | PPO |
| Material Properties | Halogen-Free |
| Standards Met | UL Recognized; Flammability Ratings: UL94 V-0; CE Compliant; CSA Certified; RoHS Compliant; Halogen Free; Conforms to NFPA 79-2015 section 13.3.1; meets a Hazard Level Classification of HL1 per European Standard EN45545-2 for R23 (exterior) |
| Compatible Duct Width (In.) | 1 |
| Compatible Duct Width (mm) | 25.4 |
| Overall Height (In.) | 0.35 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.25 |
| Overall Width (mm) | 31.8 |
| Mount Method | Snap-On |
| Wiring Duct Style | Flush Cover |
| Part Features | Halogen-Free Cover with non-slip liner to prevent cover slide. Designed for easy install and removal. |
Brand Name - NC1WH6 - Package Information
| UPC | 07498323149 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.0213 |
| Standard Ctn. Quantity | 120 |
| Standard Ctn. Volume (cf) | 0.4264 |
Brand Name - NC1WH6 - Videos
| Video URL 1 | Click to View |
|---|---|
| Video URL 2 | Click to View |
