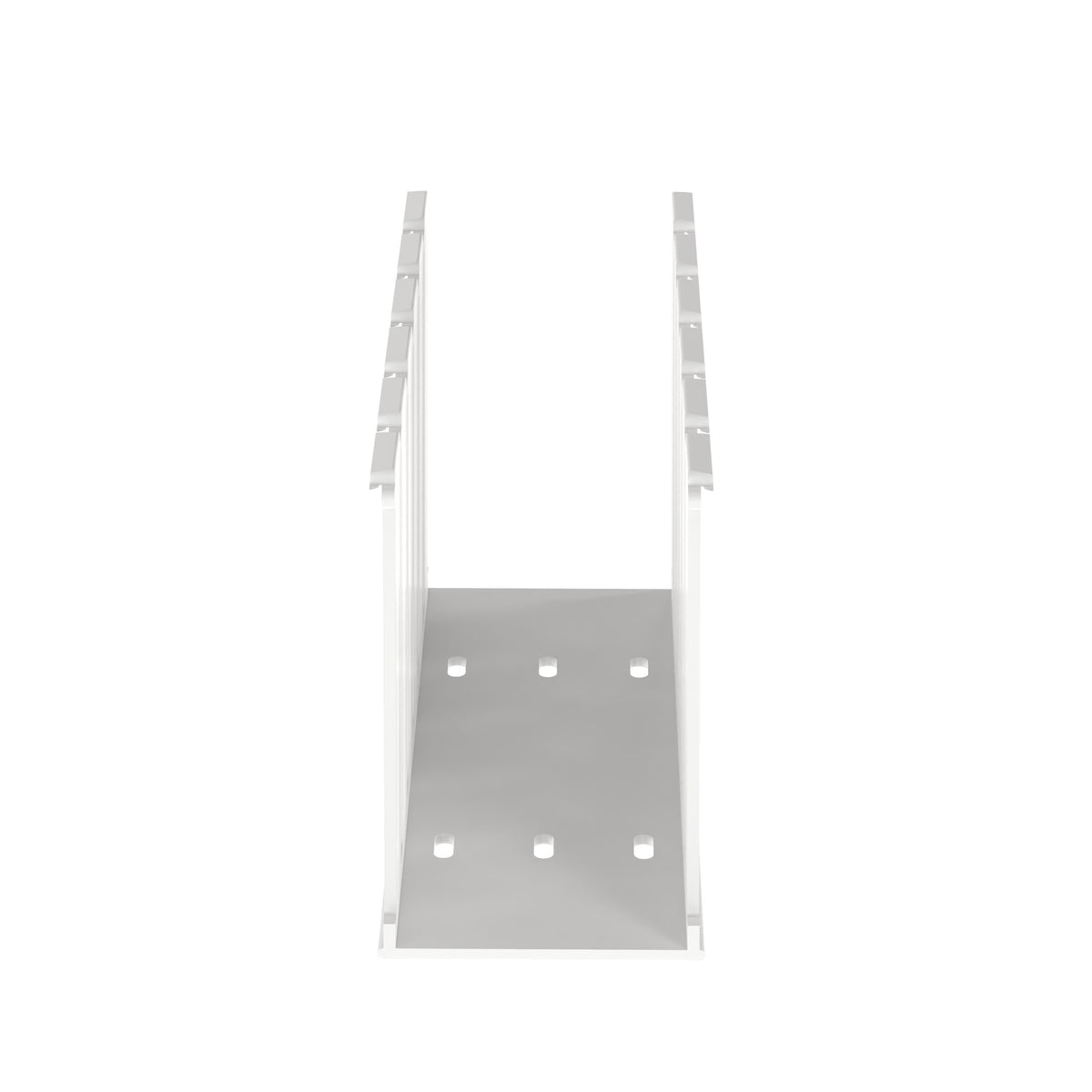

Panduit NE3X5WH6 | Base Wiring Duct | UPC - 07498321508
Regular price
$278.46
Unit price
Brand: Panduit
|
SKU:
10083253
Regular price
$278.46
Unit price
Description
Description
Panduit Panduct Slot Wall Wiring Duct, Type NE Halogen Free, 3 in Width, 5 in Depth, 6 ft Length, 0.09 in Thickness, 0.38 in Slot, Surface Mount, Halogen-Free Polyphenylene Oxide, White
Features + Benefits
- Halogen-free wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes
- Upper and lower scorelines allows easy finger and sidewall section removals
- The halogen-free material is environmentally safe and will not release corrosive or toxic gases
- Provided with mounting holes
Panduit Panduit NE3X5WH6 | Base Wiring Duct | UPC - 07498321508 Key Specs
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications |
| Product Type | Base Wiring Duct |
| Color | White |
| Cover Part Number | NC3WH6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved; EN 45545-2 HL1 |
| Material | Halogen-Free PPO |
| Mount Method | Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Overall Height (In.) | 5.06 |
| Overall Height (mm) | 128.5 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 3.14 |
| Overall Width (mm) | 79.8 |
| Slot Width (In.) | 0.38 |
| Slot Width (mm) | 9.4 |
Panduit Panduit NE3X5WH6 | Base Wiring Duct | UPC - 07498321508 Data Sheets
| Part Drawings | Halogen-Free Duct | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - NE.5X.5WH6 Product Paper | Download and View |
| Compliances | Industry Standard Compliances - Noryl vs. FR-5 Modified PPO comparison rsc | Download and View |
Panduit Panduit NE3X5WH6 | Base Wiring Duct | UPC - 07498321508 Environmental Information
| Panduit's RoHS Statement | Download and View |
