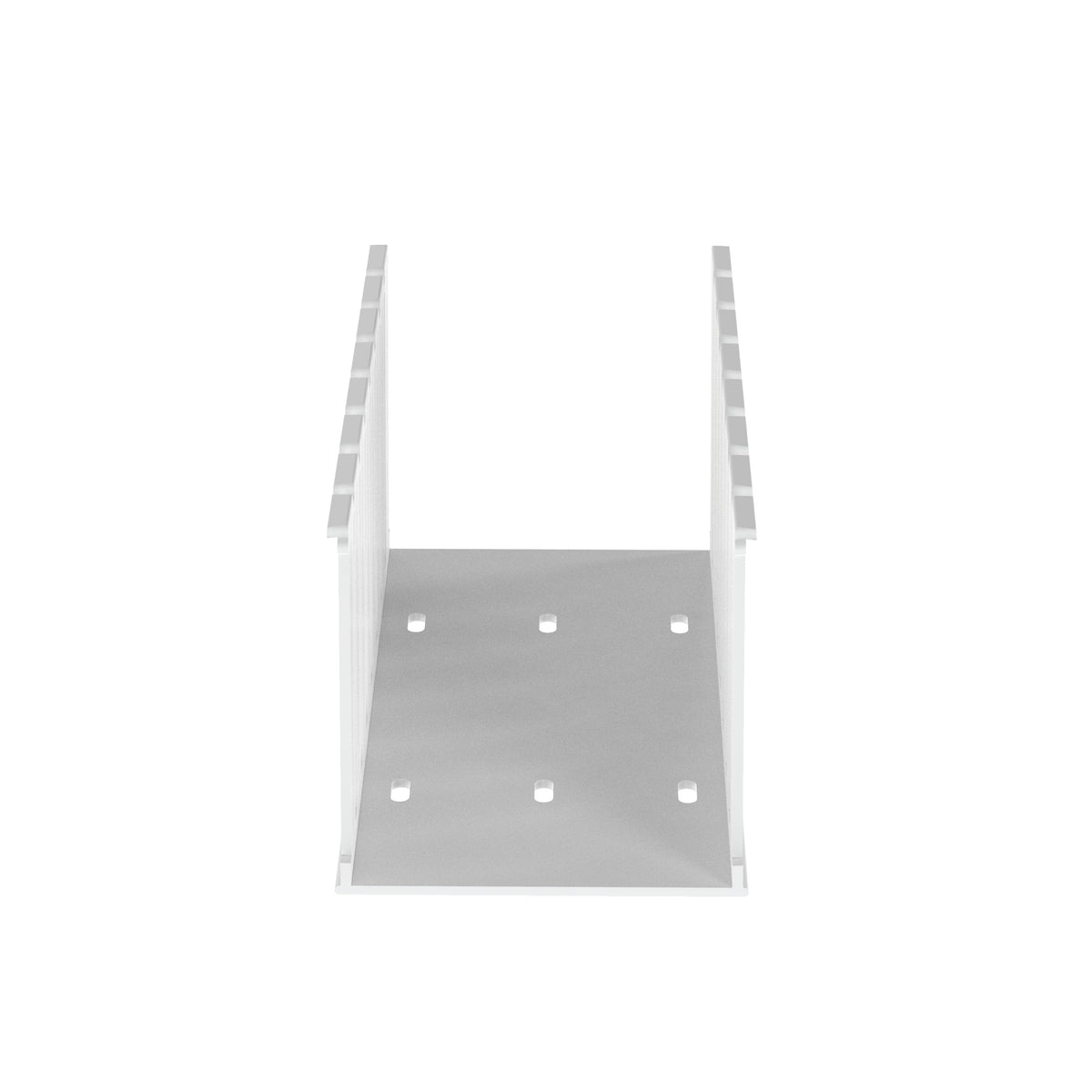

Panduit NE4X4WH6 | Panduct Wide Slot Duct, White, Hal-Free PPO, 4.06"x4.14", PK6
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit NE4X4WH6 | Panduct Wide Slot Duct, White, Hal-Free PPO, 4.0...
Description
Description
Our Type NE wide slot wiring duct safely and efficiently manages your various wire sizes in demanding environments, offering durability and flexibility for optimal cable organization.
The NE4X4WH6 Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized contin uous-use temperature up to 95C (203F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 4.06" x 4.14" (103.1 mm x 105.2 mm) and 6’ (1.83 m) long. Cover sold separately. Color White. 6 pieces per package.
Panduit Panduct Slot Wall Wiring Duct, Type NE Halogen Free, 4 in Width, 4 in Depth, 6 ft Length, 0.08 in Thickness, 0.31 in Slot, Surface Mount, Halogen-Free Polyphenylene Oxide, White
Panduit - NE4X4WH6 - Features
- Halogen-free wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes
- Upper and lower scorelines allows easy finger and sidewall section removals
- The halogen-free material is environmentally safe and will not release corrosive or toxic gases
- Provided with mounting holes
- Specifications
- Made of halogen-free material
- UL 94 flammability rating of V-1
- Provided with mounting holes
Specifications
Specifications
Panduit - NE4X4WH6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NE4X4WH6 |
| Components | Slotted Duct Standard |
| Fiber Duct H X W | 4" X 4" |
| Finish | White |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131712 |
| Duct Dimensions (In.) | 4.14W x 4.06H |
| Product Type | Base Wiring Duct |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications |
| Color | White |
| Cover Part Number | NC4WH6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved; EN 45545-2 HL1 |
| Material | PPO |
| Material Properties | Halogen-Free |
| Mount Method | DIN Standard Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 4.14 |
| Overall Width (mm) | 105.2 |
| Overall Height (In.) | 4.06 |
| Slot Width (In.) | 0.31 |
| Slot Width (mm) | 7.9 |
| Sub Brand | Panduct |
| UPC | 07498321516 |
Panduit - NE4X4WH6 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.8510 |
Panduit - NE4X4WH6 - Videos
| Panduit NE4X4WH6 Video 1 | Click to View |
|---|---|
| Panduit NE4X4WH6 Video 2 | Click to View |
