Panduit NK388MBLY | NetKey Jack Module
Regular price
$6.29
Unit price
Brand: Panduit
|
SKU:
282114
Regular price
$6.29
Unit price
Description
Description

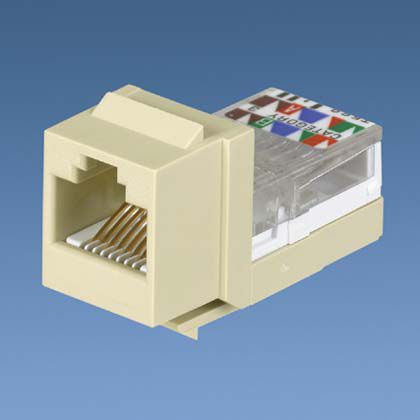

Panduit NK388MBLY | NetKey Jack Module
Category 3, 8-position, 8-wire, keystone leadframe jack module. Blue.
Panduit NetKey Keystone Jack Module, 8-Position 8-Wire Cat 3 Leadframe Unshielded, Keystone Module, 1 Ports, ABS, Blue, 0.874 in H x 0.645 in W x 1.37 in D Dimensions
Specifications
Specifications
Panduit - NK388MBLY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK388MBLY |
| Product Type | Jack Module |
| Connector Type | Jack Module - Standard |
| Termination Style | Leadframe |
| Body Material | ABS |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | NetKey |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Black |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Length (In.) | 1.37 |
| Overall Length (mm) | 34.8 |
| UPC | 07498305473 |
Panduit - NK388MBLY - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.69.8000 |
Panduit - NK388MBLY - Videos
| Panduit NK388MBLY Video 1 | Click to View |
|---|
