Brand: Panduit
|
SKU:
282116

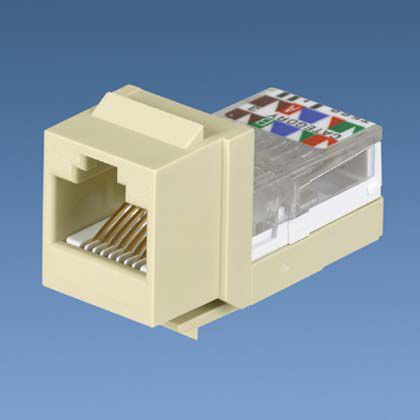

Panduit NK388MIGY | NK, 8Port/8 Wire, Cat3, Jack Mod, BL, EA
Regular price
$6.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit NK388MIGY | NK, 8Port/8 Wire, Cat3, Jack Mod, BL, EA
Regular price
$6.29
Unit price
Description
Description
Panduit NK388MIGY | NK, 8Port/8 Wire, Cat3, Jack Mod, BL, EA
Category 3, 8-position, 8-wire, keystone leadframe jack module.
Category 3, 8-position, 8-wire, keystone leadframe jack module.
Panduit - NK388MIGY - Features
- Without pulling eye
Specifications
Specifications
Panduit - NK388MIGY - Specifications
| Product Type | Jack Module |
|---|---|
| Connector Type | Jack Module - Standard |
| Termination Style | Leadframe |
| Body Material | ABS |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | NetKey® |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | International Gray |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Length (In.) | 1.37 |
| Overall Length (mm) | 34.8 |
| UPC | 07498305475 |
Panduit - NK388MIGY - Package Information
| UPC | 07498305475 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0030 |
| Standard Ctn. Quantity | 50 |
| Standard Ctn. Volume (cf) | 0.1484 |
Panduit - NK388MIGY - Videos
| Panduit NK388MIGY Videos | Click to View |
|---|
