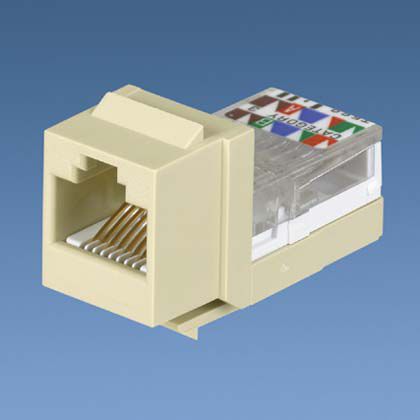

Panduit NK388MIWY | NetKey Jack Module
Regular price
$6.29
Unit price
Brand: Panduit
|
SKU:
282117
Regular price
$6.29
Unit price
Description
Description
Panduit NK388MIWY | NetKey Jack Module
Category 3, 8-position, 8-wire, keystone leadframe jack module. Off White.
Panduit NetKey Keystone Jack Module, 8-Position 8-Wire Cat 3 Unshielded, Keystone Module, 1 Ports, ABS, Off-White, 0.874 in H x 0.645 in W x 1.37 in D Dimensions
Panduit - NK388MIWY - Features
- Exceeds all industry performance standards for Cat 6A, 6, 5e and 3
- Punchdown jack modules are 100% performance tested and individually serialized for future traceability
- Supports PoE, PoE+ and PoE++
- Snap-in and out of keystone openings for easy moves, adds and changes
- Universal label includes T568A and T568B wiring schemes
Specifications
Specifications
Panduit - NK388MIWY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK388MIWY |
| Product Type | Jack Module |
| Connector Type | Jack Module - Standard |
| Termination Style | Leadframe |
| Body Material | ABS |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | NetKey |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Length (In.) | 1.37 |
| Overall Length (mm) | 34.8 |
| Overall Width (In.) | 0 |
| UPC | 07498305476 |
Panduit - NK388MIWY - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.69.8000 |
Panduit - NK388MIWY - Videos
| Panduit NK388MIWY Video 1 | Click to View |
|---|
