Panduit NK4BXIG-AY | NetKey Surface Mount Box 4 Position
Regular price
$7.44
Unit price
Brand: Panduit
|
SKU:
NK4BXIG-AY
Regular price
$7.44
Unit price
Description
Description

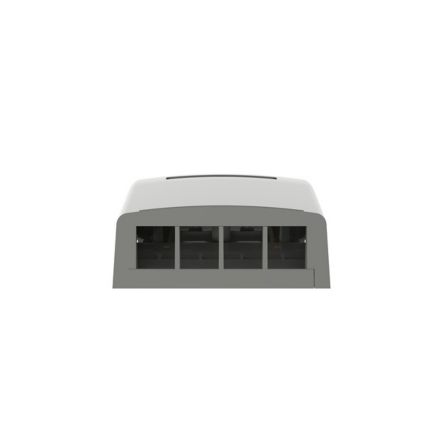

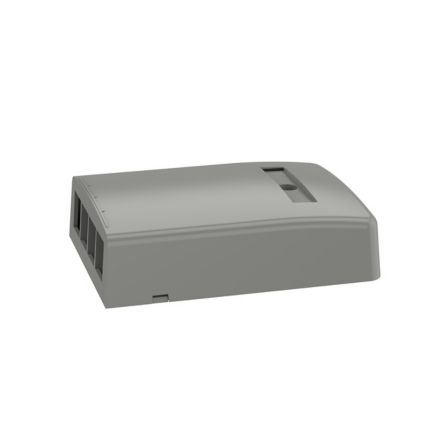

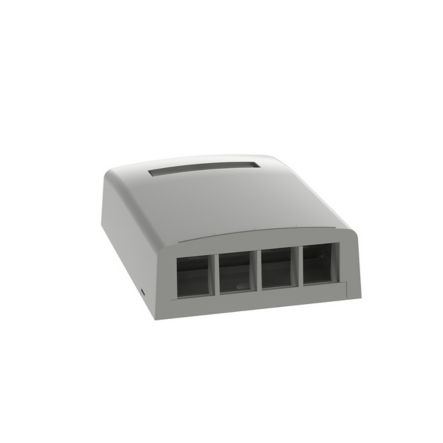

Panduit NK4BXIG-AY | NetKey Surface Mount Box, 4-Port, International Gray
The NetKey Surface Mount Box accepts four keystone modules. The box offers a variety of mounting options using adhesive tape, screws, or optional magnet. The box can be identified with an adhesive label and is international gray.
Panduit - NK4BXIG-AY - Features
- Four position surface mount box - adhesive.
- Accept NetKey(TM) Modules
- Mount easily with supplied mounting screws, adhesive tape or optional magnet (CBM-X)
- Optional adhesive labels available
Specifications
Specifications
Panduit - NK4BXIG-AY - Product Categories
- Copper Systems
- Surface Mount Boxes
Panduit - NK4BXIG-AY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK4BXIG-AY |
| Item Description | NetKey Surface Mount Box, 4-Port, International Gray |
| Product Type | Elongated |
| Number of Ports | 4 |
| Module Type | Keystone |
| Color | International Gray |
| Identification Type | Label Pocket |
| Includes | (1) Box Base, (2) Box Cover, (3) 2- PLT1.5I-C PAN-TY, (4) 2- Mounting Screw, (5) Mounting Screw (Used to Secure Cover to Base), (6) Label/Label Cover, (7) 2- Strip of 1.25" X .75" Foam Tape for Mounting |
| Overall Width (In.) | 3.26 |
| Overall Width (mm) | 82.8 |
| Overall Height (In.) | 1.23 |
| Overall Height (mm) | 31.2 |
| Sub Brand | NetKey |
| Raceway Opening | LD3/LDP3 or LD5/LDP5, LD10/LDP10 |
| Material | ABS |
| Standards Met | RoHS Compliant |
Panduit - NK4BXIG-AY - Package Information
| UPC | 07498317613 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0253 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.2529 |
