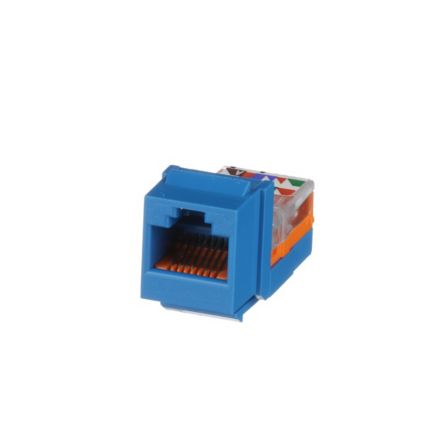

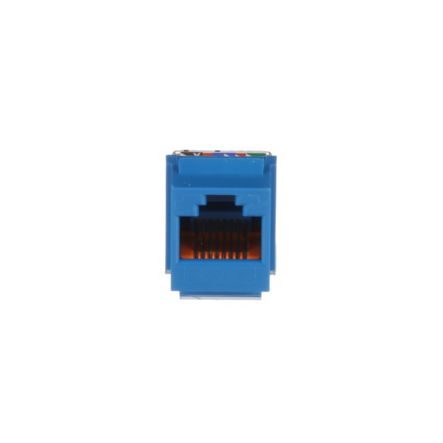

Panduit NK5E88MBUY | NK Category 5e leadframe Jack module, Blue
Regular price
$9.45
Unit price
Brand: Panduit
|
SKU:
282097
Regular price
$9.45
Unit price
Description
Description
Panduit NK5E88MBUY | UTP RJ45 Cat 5e Leadframe Keystone Jack Module, BU

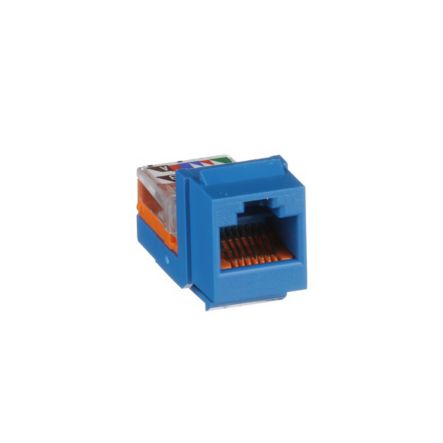

The NetKey Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with keystone interfaces including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. This jack module is blue.
Panduit - NK5E88MBUY - Features
- Meets Category 5e performance requirements
- 8 position, 8 wire Keystone modules color-coded for T568A or T568B wiring schemes
- Terminates 4-pair 24 to 22 AWG 100 Ohm solid unshielded twisted pair cable
- Compatible with NetKey(TM) Faceplates, Surface Mount Boxes, Modular Patch Panels
Specifications
Specifications
Panduit - NK5E88MBUY - Product Categories
- Copper Systems
- Jack Modules
Panduit - NK5E88MBUY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK5E88MBUY |
| Item Description | UTP RJ45 Cat 5e Leadframe Keystone Jack Module, BU |
| Note | Leadframe style jack |
| Product Type | Jack Module |
| Performance Level | Category 5e |
| Connector Type | Jack Module - Standard |
| Termination Style | Leadframe |
| Body Material | ABS/Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | NetKey |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Blue |
| Standards Met | Meets all TIA/EIA-568-C.2 Category 5e and ISO 11801 Channel Performance, 2nd Edition Class D Channel Requirements at Swept Frequencies up to 100 MHz. Meets ANSI/TIA-968-A, Meets IEC 60603-7, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, and RoHS Compliant |
| Overall Depth (In.) | 1.37 |
| Overall Depth (mm) | 34.8 |
| Overall Height (In.) | 0.87 |
| Overall Height (mm) | 22.2 |
| Overall Length (In.) | 1.37 |
| Overall Length (mm) | 34.8 |
| Overall Width (In.) | 0.65 |
| Overall Width (mm) | 16.4 |
Panduit - NK5E88MBUY - Package Information
| UPC | 07498305498 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0032 |
| Standard Ctn. Qty. | 50 |
| Standard Ctn. Volume (cf) | 0.1604 |
Panduit - NK5E88MBUY - Videos
| Video 1 | Click to View |
|---|
