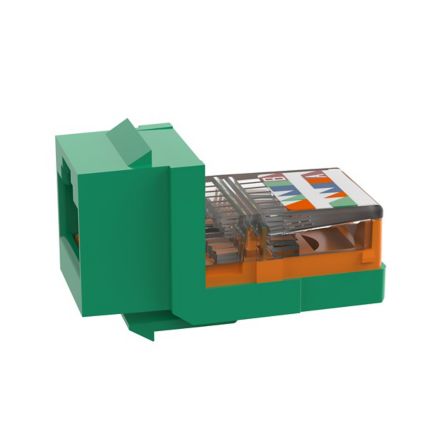

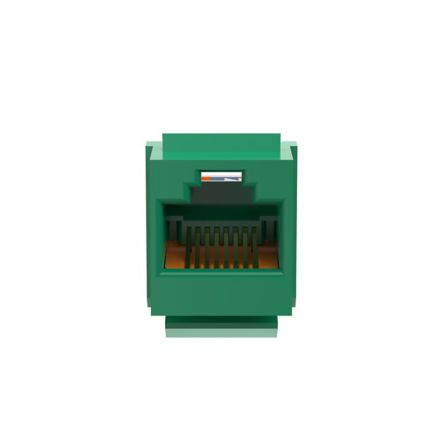

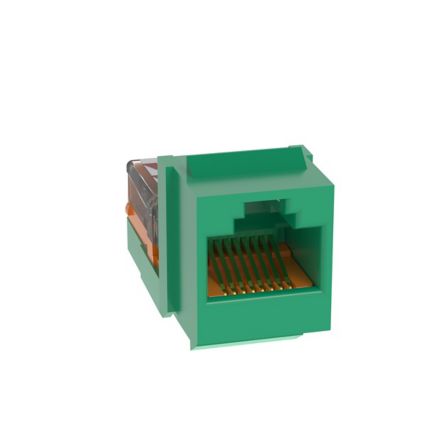

Panduit NK5E88MGRY | NK Category 5e leadframe Jack module, Green
Regular price
$9.45
Unit price
Brand: Panduit
|
SKU:
282099
Regular price
$9.45
Unit price
Description
Description
Panduit NK5E88MGRY | NetKey Cat 5e Leadframe Jack, Green
The NetKey Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with keystone interfaces including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. This jack module is green.
Panduit - NK5E88MGRY - Features
- Meets Category 5e performance requirements
- 8 position, 8 wire Keystone modules color-coded for T568A or T568B wiring schemes
- Terminates 4-pair 24 to 22 AWG 100 Ohm solid unshielded twisted pair cable
- Compatible with NetKey(TM) Faceplates, Surface Mount Boxes, Modular Patch Panels
Specifications
Specifications
Panduit - NK5E88MGRY - Product Categories
- Copper Systems
- Jack Modules
Panduit - NK5E88MGRY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK5E88MGRY |
| Item Description | NetKey Cat 5e Leadframe Jack, Green |
| Note | Leadframe style jack |
| Product Type | Jack Module |
| Performance Level | Category 5e |
| Connector Type | Jack Module - Standard |
| Termination Style | Leadframe |
| Body Material | ABS/Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | NetKey |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Green |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Depth (In.) | 1.37 |
| Overall Depth (mm) | 34.8 |
| Overall Height (In.) | 0.87 |
| Overall Height (mm) | 22.1 |
| Overall Length (In.) | 1.37 |
| Overall Length (mm) | 34.8 |
| Overall Width (In.) | 0.65 |
| Overall Width (mm) | 16.5 |
Panduit - NK5E88MGRY - Package Information
| UPC | 07498305500 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0032 |
| Standard Ctn. Qty. | 50 |
| Standard Ctn. Volume (cf) | 0.1605 |
Panduit - NK5E88MGRY - Videos
| Video 1 | Click to View |
|---|
