Brand: Panduit
|
SKU:
MM14-NK5E-04
Panduit NK5EPC14GRY | NetKey Patch Cord
Regular price
$11.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog

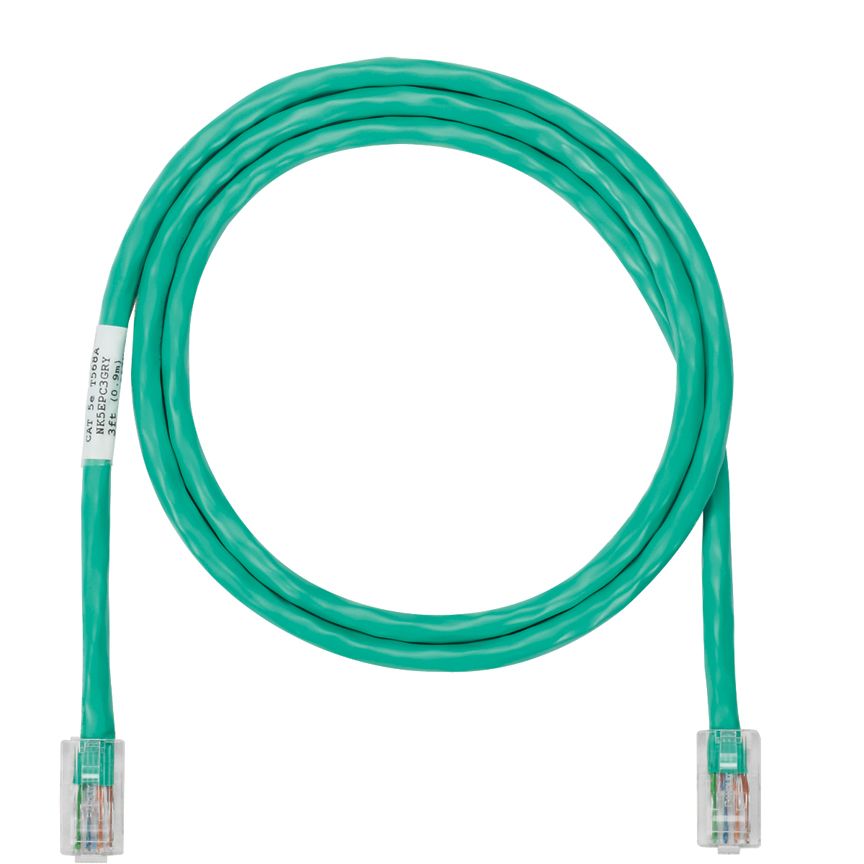

Panduit NK5EPC14GRY | NetKey Patch Cord
Regular price
$11.08
Unit price
Description
Description
Panduit NK5EPC14GRY | NetKey Patch Cord
Netkey copper patch cord, category 5e, 14 ft., green UTP cable.
Panduit NK5EPC14GRY Nk Copper Patch Cord, Category 5e, Green Utp Cable, 14ft
Specifications
Specifications
Panduit - NK5EPC14GRY - Product Categories
- Copper Systems
- Patch Cords
Panduit - NK5EPC14GRY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK5EPC14GRY |
| Item Description | NetKey Patch Cord |
| Application | 1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet) 2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM 3) Token Ring 4/16 4) Voice over internet protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 14 |
| Sub Brand | NetKey |
| Nominal Cable Outside Diameter (In.) | 0.21 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Color | Green |
| Flammability Rating | CM |
| Standards Met | Exceeds all ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D channel requirements at swept frequencies up to 100 MHz; Meets ANSI/TIA-568-C.2 and ISO 11801 Category 5e component requirements at swept frequencies up to 100 MHz; Complies with ANSI/TIA-1096A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications; cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886); RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE, PoE+, PoE++ |
| Plug Type | 8 Position |
| RapidID Enabled | No |
| Part Features | 100% performance tested, Patented tangle free latch, Identification and Variety of color and lengths available |
Panduit - NK5EPC14GRY - Package Information
| UPC | 07498305514 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0347 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.3474 |
