Panduit NK5EPC14RDY | NetKey
Description
Description
Connect your devices to your network with our reliable Cat 5e UTP patch cord, featuring a tangle-free latch for easy installation and reconfiguration.
The NetKey copper and fiber cabling system provides a complete, standards compliant cabling infrastructure solution for voice, data and video applications. NetKey modules feature the universal ''keystone'' design and are compatible with a wide assortment of modular patch panels, faceplates and surface mount boxes. When teamed with complementary Panduit products. The NetKey solutions cover all your needs from the telecommunication room to the work area with the proven innovation and quality you depend on from Panduit.

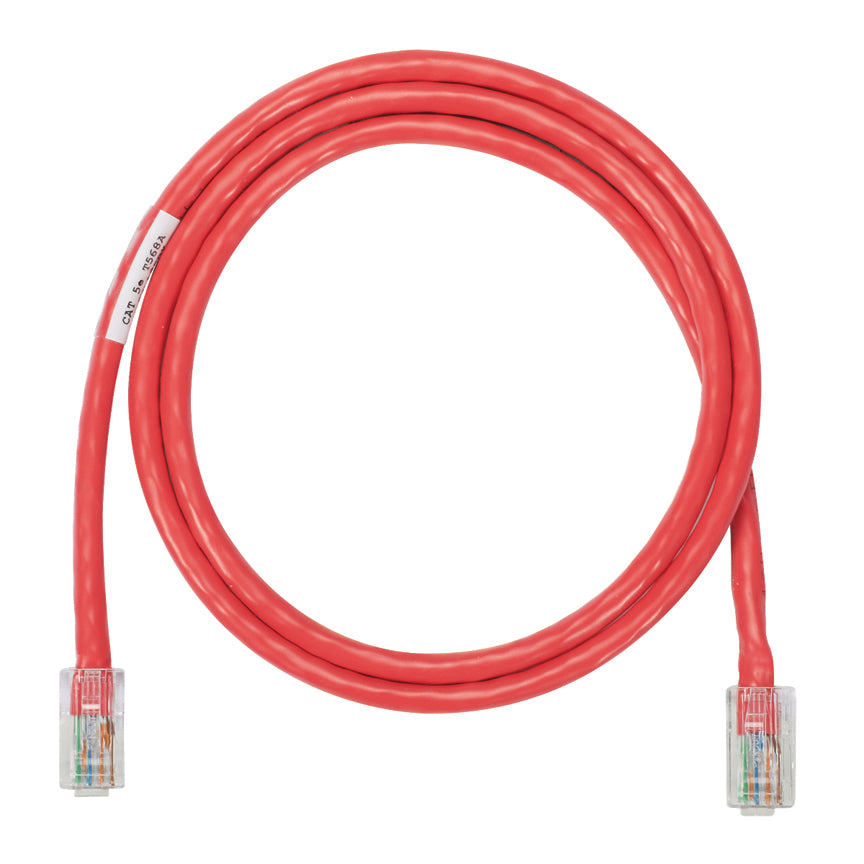

Panduit NetKey Patch Cord, Class D, Series: NK5EPC, Category: Cat 5e, 24 AWG Conductor, U/UTP Copper Conductor, Modular Plug Connector, 14 ft Cord Length, Red, 14 to 140 deg F
Panduit - NK5EPC14RDY - Features
- 100% performance tested
- Patented tangle free latch
- Slender strain relief boot
Specifications
Specifications
Panduit - NK5EPC14RDY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK5EPC14RDY |
| Application | Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Token Ring 4/16, Voice over internet protocol (VoIP) |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Overall Length (ft.) | 14 |
| Sub Brand | NetKey |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Color | Red |
| Flammability Rating | CM |
| Standards Met | ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D, ANSI/TIA-568-C.2 and ISO 11801 Category 5e, ANSI/TIA-1096A (formerly FCC Part 68), IEC 60603-7, IEEE 802.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), CM rated802.3af / 802.3at and 802.3bt type 3 and type 4, UL 1863, CSA standard C22.2, RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | Meets IEC 60603-7 |
| RapidID Enabled | No |
| UPC | 07498305515 |
