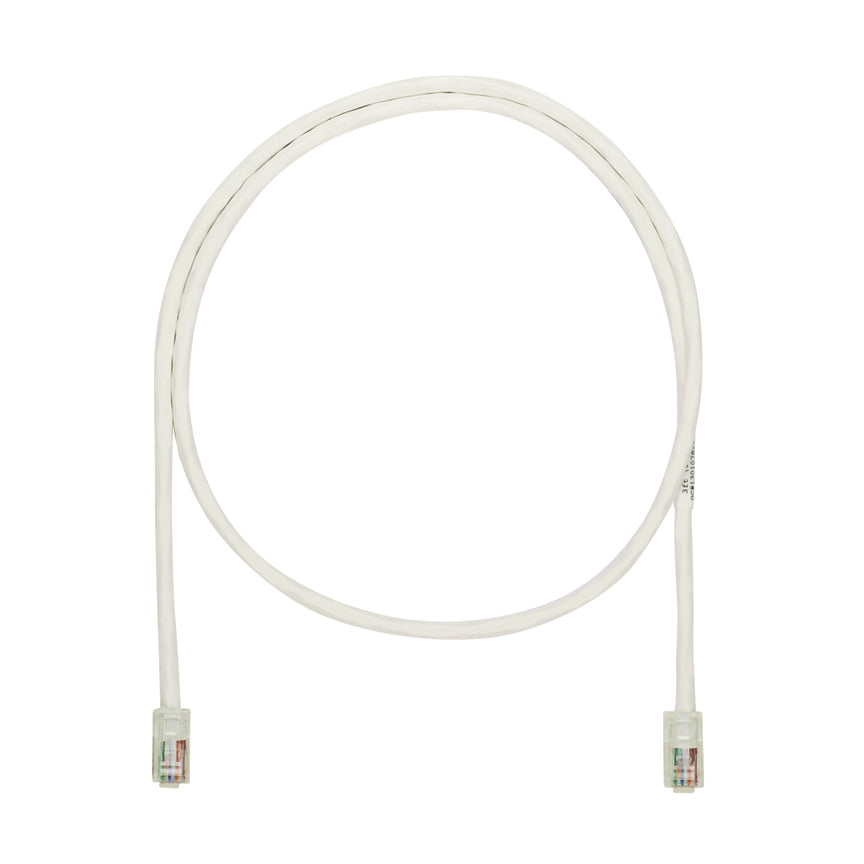

Panduit NK5EPC14Y | NetKey Patch Cord
Description
Description
Connect your devices to your network with our reliable Cat 5e UTP patch cord, featuring a tangle-free latch for easy installation and reconfiguration.
Netkey copper patch cord, category 5e, 14 ft., off white UTP cable.
Category 5e/Class D patch cords are constructed of UTP 24 AWG stranded copper cable and a modular plug at each end. Patch cords are used in all work area outlets and patch panels. Patch cords are wired to be compatible with both T568A and T568B wiring schemes.
Panduit NetKey Patch Cord, U/UTP, Series: NK5EPC, Category: Cat 5e, 24 AWG Conductor, Stranded Copper Conductor, RJ45 Connector, 14 ft Cord Length, Off-White, 14 to 140 deg F
Panduit - NK5EPC14Y - Features
- 100% performance tested
- Patented tangle free latch
Specifications
Specifications
Panduit - NK5EPC14Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK5EPC14Y |
| Category | Category 5E |
| Color | White |
| Lengths | 14 Ft. | 4.27 M |
| Connector Type | Rj45 To Rj45 |
| Shielded | U/Utp - Unshielded Twisted Pair |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Product Type | Patch Cord |
| Application | 1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet) 2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM 3) Token Ring 4/16 4) Voice over internet protocol (VoIP) |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 14 |
| Sub Brand | NetKey |
| Nominal Cable Outside Diameter (In.) | 0.21 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Color | Off White |
| Flammability Rating | CM |
| Standards Met | Exceeds all ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D channel requirements at swept frequencies up to 100 MHz; Meets ANSI/TIA-568-C.2 and ISO 11801 Category 5e component requirements at swept frequencies up to 100 MHz; Complies with ANSI/TIA-1096A; |
| UPC | 07498305512 |
