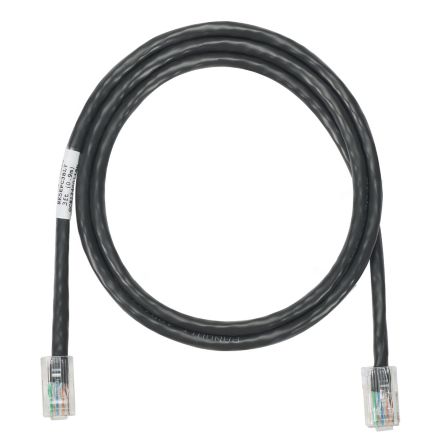

Panduit NK5EPC2MORY | NetKey Patch Cord
Regular price
$10.35
Unit price
Brand: Panduit
|
SKU:
MM02M-NK5E-08
Regular price
$10.35
Unit price
Description
Description
Panduit NK5EPC2MORY | NetKey Patch Cord
Netkey copper patch cord, category 5e, 2 meters, orange UTP cable.
Panduit NK5EPC2MORY NetKey Copper Patch Cord, Category 5e, Orange UTP Cable, 2 Meter
Specifications
Specifications
Panduit - NK5EPC2MORY - Product Categories
- Copper Systems
- Patch Cords
Panduit - NK5EPC2MORY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK5EPC2MORY |
| Item Description | NetKey Patch Cord |
| Application | 1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet) 2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM 3) Token Ring 4/16 4) Voice over internet protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | NetKey |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 2 |
| Nominal Cable Outside Diameter (mm) | 5.5 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Color | Orange |
| Flammability Rating | CM |
| Standards Met | Exceeds all ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D channel requirements at swept frequencies up to 100 MHz; Meets ANSI/TIA-568-C.2 and ISO 11801 Category 5e component requirements at swept frequencies up to 100 MHz; Complies with ANSI/TIA-1096A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications; cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886); RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE, PoE+, PoE++ |
| Plug Type | 8 Position |
| RapidID Enabled | No |
| Part Features | 100% performance tested, Patented tangle free latch, Identification and Variety of color and lengths available |
Panduit - NK5EPC2MORY - Package Information
| UPC | 07498331483 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0240 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.2397 |
