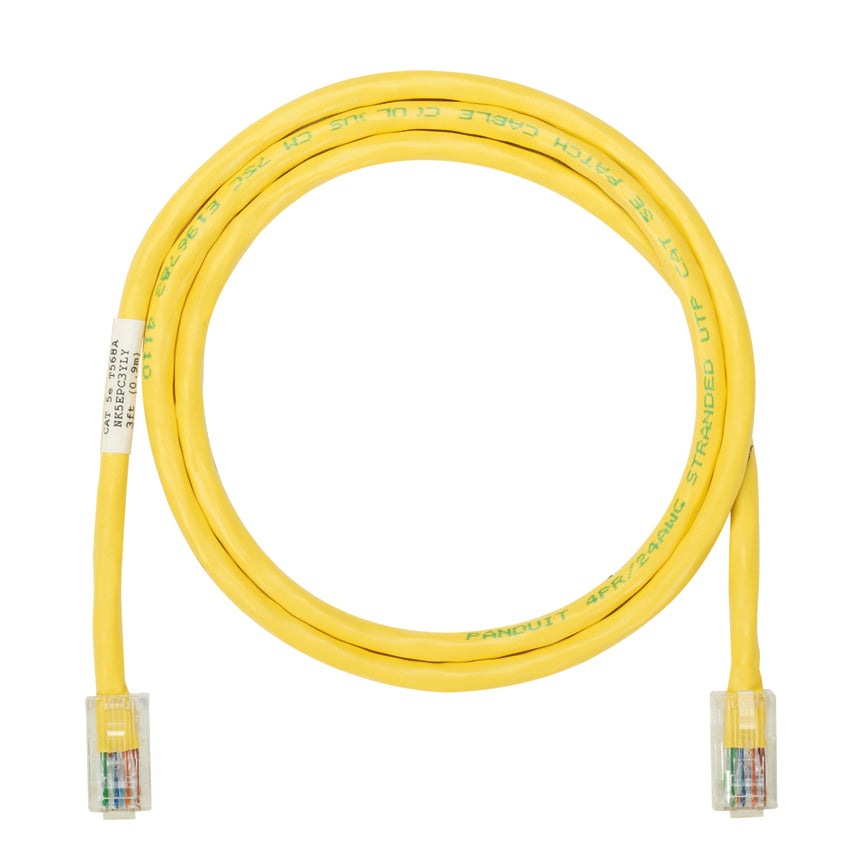

Panduit NK5EPC3YLY | Patch Cord | UPC - 07498305526
Regular price
$8.90
Unit price
Brand: Panduit
|
SKU:
MM03-NK5E-05
Regular price
$8.90
Unit price
Description
Description
Category 5e/Class D patch cords are constructed of UTP 24 AWG stranded copper cable and a modular plug at each end. patch cords are used in all work area outlets and patch panels. Patch cords are wired to be compatible with both T568A and T568B wiring schemes.
Panduit NetKey Patch Cord, Category: Cat 5e, 24 AWG Conductor, U/UTP Copper Conductor, Modular Plug Connector, 3 ft Cord, Yellow, 14 to 140 deg F
Features + Benefits
- 100% performance tested for wire map, next and return loss
- Centered de-embedded plug
- Integral pair manager
- Patented tangle free latch
- Robust construction
Panduit NK5EPC3YLY | Patch Cord | UPC - 07498305526 Key Specs
| Application | 1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet) 2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM 3) Token Ring 4/16 4) Voice over internet protocol (VoIP) |
| Note | NK5EPC3Y replaces NK5EPC3 |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 3 |
| Sub Brand | NetKey |
| Nominal Cable Outside Diameter (In.) | 0.21 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
Panduit NK5EPC3YLY | Patch Cord | UPC - 07498305526 Data Sheets
| Line Cards | NetKey Cabling System | Download and View |
| Line Cards | | Download and View |
| Part Drawings | Netkey Category 5E Patch Cord NKNK5EPCXXXY--ENG | Download and View |
Panduit NK5EPC3YLY | Patch Cord | UPC - 07498305526 Environmental Information
| Panduit's RoHS Statement | Download and View |
