Panduit NK688MOR-Q | NetKey Cat 6 Punchdown Jack, Orange - Pack of 25
Description
Description

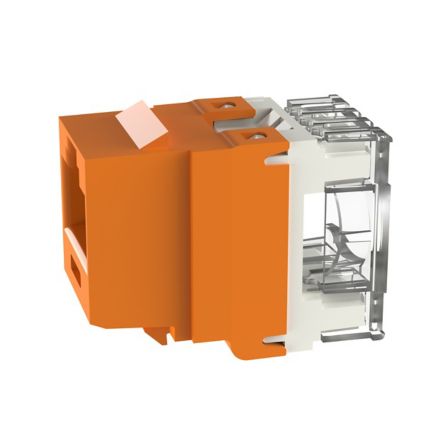

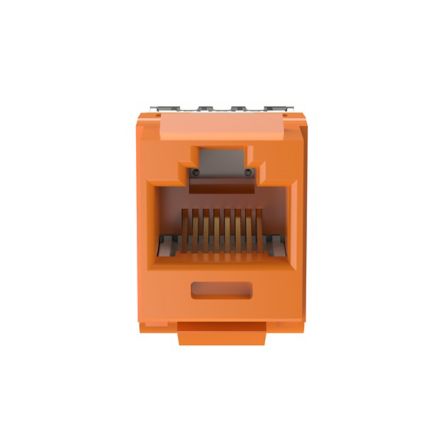

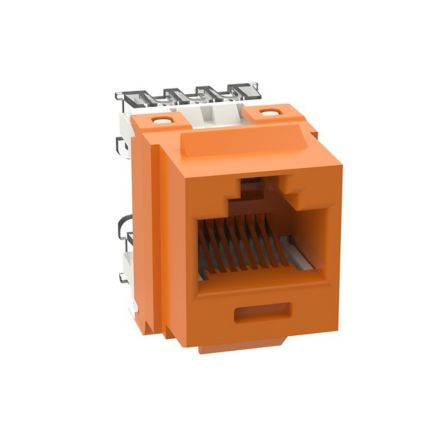

The NetKey Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is orange and includes 25 per package.
Panduit - NK688MOR-Q - Features
- Category 6, 8-position, 8-wire Keystone jack module.
- Meets Category 6 and 5e performance requirements
- Bulk packaged for high volume installations to further speed installation and reduce on-site waste
- No punchdown tool required for Category 5e, optional termination tool ensures conductors are fully terminated
- 8 position, 8 wire Keystone modules color-coded for T568A or T568B wiring schemes
- Terminates 4-pair 24 to 22 AWG 100 Ohm solid unshielded twisted pair cable
- Compatible with NetKey(TM) Faceplates, Surface Mount Boxes and Modular Patch Panels
Specifications
Specifications
Panduit - NK688MOR-Q - Product Categories
- Copper Systems
- Jack Modules
Panduit - NK688MOR-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK688MOR-Q |
| Item Description | NetKey Cat 6 Punchdown Jack, Orange - Pack of 25 |
| Note | Punchdown style termination; convenience pack of 25 |
| Product Type | Jack Module |
| Performance Level | Category 6 |
| Connector Type | Jack Module - Standard |
| Termination Style | Punchdown |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | NetKey |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Orange |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Depth (In.) | 1.16 |
| Overall Depth (mm) | 29.5 |
| Overall Height (In.) | 0.9 |
| Overall Height (mm) | 22.9 |
| Overall Length (In.) | 1.16 |
| Overall Length (mm) | 29.5 |
| Overall Width (In.) | 0.65 |
| Overall Width (mm) | 16.5 |
Panduit - NK688MOR-Q - Package Information
| UPC | 07498371759 |
|---|---|
| Standard Package Quantity | 25 |
| Standard Package Volume (cf) | 0.0362 |
| Standard. Ctn. Quantity | 250 |
| Standard. Ctn. Volume (cf) | 0.3621 |
