Panduit NK688MRD-Q | NetKey Cat 6 Punchdown Jack, Red - Pack of 25
Description
Description
Expand your network with this easy-to-install Cat 6 jack. It ensure reliable, high-performance connections for your office or workspace and come in a variety of colors.

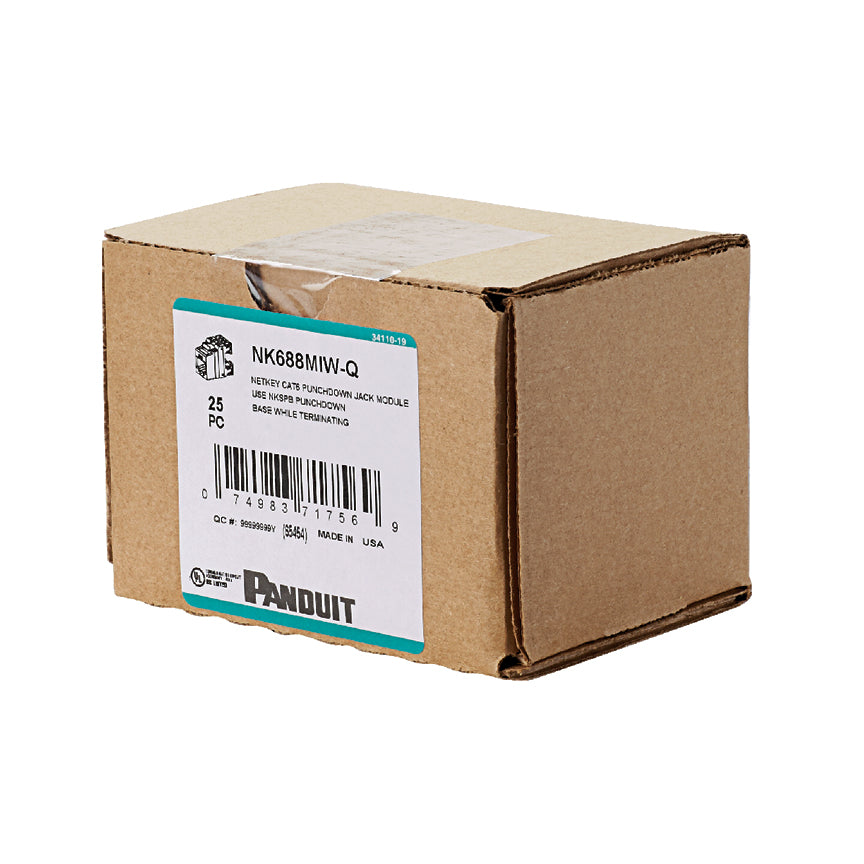

Bulk pack of 25, Category 6, 8-position, 8-wire, keystone punchdown jack modules. Red.
Panduit NetKey Keystone Jack Module, 8-Position 8-Wire Cat 6 Punchdown Unshielded, Surface Mount, 1-Port, For Use With: Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Voice Over Internet Protocol (VoIP), Token Ring 4/16, ABS/Polycarbonate, Red, 0.65 in L x 1.16 in W x 0.9 in H
Panduit - NK688MRD-Q - Features
- Confidence that each jack module delivers specified performance
- Utilizes industry standard termination style and includes wire retention cap
- Universal keystone jack modules snap in and out of all NetKey faceplates, modular patch panels and surface mount boxes for fast moves, adds and changes
- Marked with quality control number for future traceability
- Eliminating the time to open each individual package and reducing on site waste, ideal for high volume installations
Specifications
Specifications
Panduit - NK688MRD-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK688MRD-Q |
| UNSPSC Code | 39121444 |
| Note | Punchdown style termination; convenience pack of 25 |
| Product Type | Jack Module |
| Performance Level | Category 6 |
| Connector Type | Jack Module - Standard |
| Termination Style | Punchdown |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | NetKey |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Red |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| UPC | 07498399714 |
