Panduit NK6APC1 | NetKey Cat 6A 26 AWG UTP Patch Cord, 1 ft, White
Description
Description

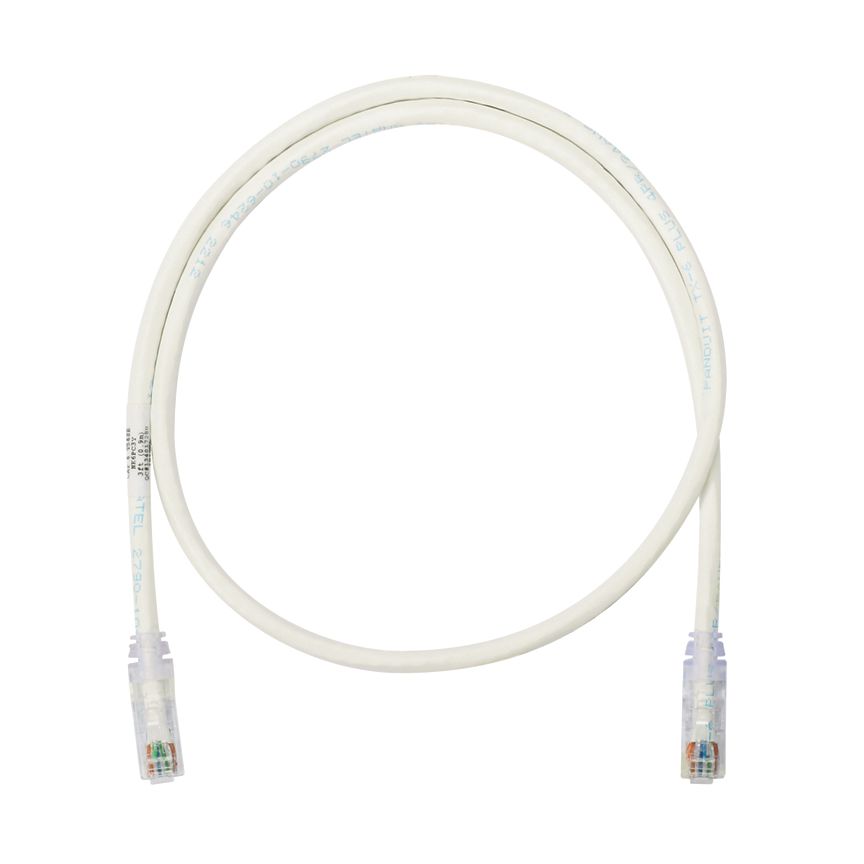

The NetKey Cat 6A UTP Patch Cord is constructed of 26 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord’s slender strain relief boot provides easy access in high-density applications. The patch cord is 1 foot in length and off white.
Panduit NK6APC1 Panduit Nk6apc1 Patch Cord Mod
Specifications
Specifications
Panduit - NK6APC1 - Product Categories
- Copper Systems
- Patch Cords
Panduit - NK6APC1 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK6APC1 |
| Item Description | NetKey Cat 6A 26 AWG UTP Patch Cord, 1 ft, White |
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing. |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | 0.25 |
| Performance Level | Category 6A |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 1 |
| Sub Brand | NetKey |
| Nominal Cable Outside Diameter (In.) | 0.252 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| Color | Off White |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes. |
| IEC Variant | 60603-7 |
| PoE Compatibility | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt Type 3 and 4 (PoE++) |
| Plug Type | 8 Position |
| RapidID Enabled | No |
Panduit - NK6APC1 - Package Information
| UPC | 61305636823 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0153 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1535 |
