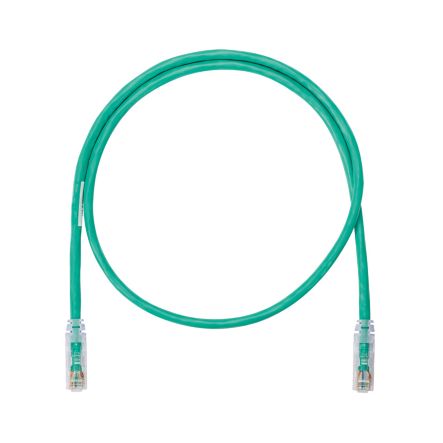

Panduit NK6APC15MGR | NetKey Patch Cord
Regular price
$50.91
Unit price
Brand: Panduit
|
SKU:
MM15M-NK6A-04
Regular price
$50.91
Unit price
Description
Description
Panduit NK6APC15MGR | NetKey Patch Cord
Netkey copper patch cord, category 6A, CM/LSZH, 15 meters, green UTP cable.
Panduit NK6APC15MGR Netkey Cat6A Patch Cord, CM/LSZH, Green, 15 meter
Specifications
Specifications
Panduit - NK6APC15MGR - Product Categories
- Copper Systems
- Patch Cords
Panduit - NK6APC15MGR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK6APC15MGR |
| Item Description | NetKey Patch Cord |
| Application | (1) 10GBASE-T Ethernet (2) Wireless deployment (3) Power over Ethernet (4) Video streaming |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | 0.2 |
| Sub Brand | NetKey |
| Performance Level | Category 6A |
| Conductor Type | Stranded |
| Cable Construction | F/UTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 15 |
| Nominal Cable Outside Diameter (mm) | 6.4 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Boot Color | Clear |
| Color | Green |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA channel requirements at swept frequencies up to 500 MHz, Meets ANSI/TIA-568-C.2 and ISO 11801 Category 6A component requirements at swept frequencies up to 500 MHz, Complies with ANSI/TIA-1096-A (formerly FCC Part 68); contacts plated with 50 microinches of gold for superior performance, Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | 8 Position |
| RapidID Enabled | No |
| Part Features | 100% performance tested for wiremap, NEXT, and return loss, Integral pair manager, Patented tangle free latch, Slender strain relief boot with a variety of colors and lengths available. |
Panduit - NK6APC15MGR - Package Information
| UPC | 07498396334 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1326 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 1.3262 |
