Brand: Panduit | SKU: 10160477

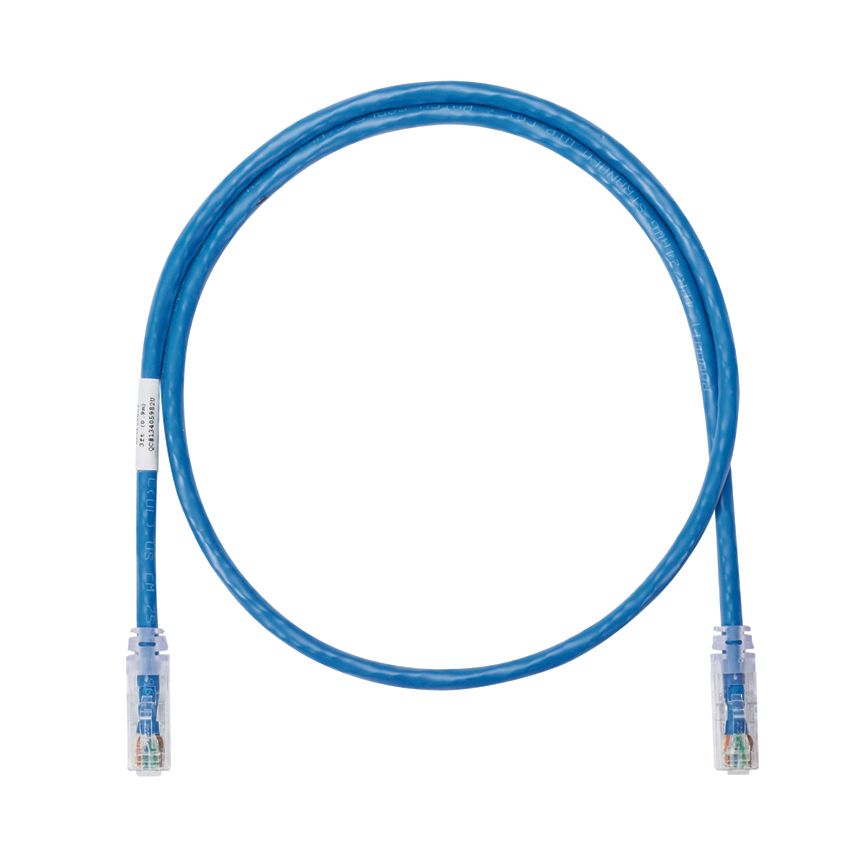

Panduit NK6APC16BU | NetKey Patch Cord

Name: Panduit NK6APC16BU | NetKey Patch Cord
Brand: Anixter
SKU: 10160477
Price: 26.36 USD
Availability: InStock

$26.36

Description

Netkey copper patch cord, category 6A, CM/LSZH, 16 ft., Blue UTP cable.

Panduit NK6APC16BU Panduit Nk6apc16bu Patch Cord

Brand Name	Panduit
Manufacturer Part Number	NK6APC16BU
Item Description	NetKey Patch Cord
Application	(1) 10GBASE-T Ethernet(2) Wireless deployment(3) Power over Ethernet(4) Video streaming
Product Type	Patch Cord
Conductor Gauge (AWG)	26
Conductor Gauge (kcmil)	0.2
Performance Level	Category 6A
Conductor Type	Stranded
Cable Construction	F/UTP
Patch Cord Type	Shielded
Plug Housing Material	Copper
Jacket Material	LSZH Material
Connector 1 Type	Modular Plug
Connector 2 Type	Modular Plug
Overall Length (ft.)	16
Sub Brand	NetKey
Nominal Cable Outside Diameter (In.)	0.25
Wiring Scheme	T568A/T568B
Maximum Operating Temperature (°F)	140
Minimum Operating Temperature (°F)	14
Maximum Storage Temperature (°F)	158
Minimum Storage Temperature (°F)	-40
Boot Color	Clear
Color	Blue
Flammability Rating	Dual Rated (CM/LSZH)
Standards Met	Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA channel requirements, Meets ANSI/TIA-568-C.2 and ISO 11801 Category 6A component requirements, Complies with ANSI/TIA-1096-A, Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 , RoHS Compliant
IEC Variant	60603-7
PoE Compatibility	PoE
Plug Type	8 Position
RapidID Enabled	No
