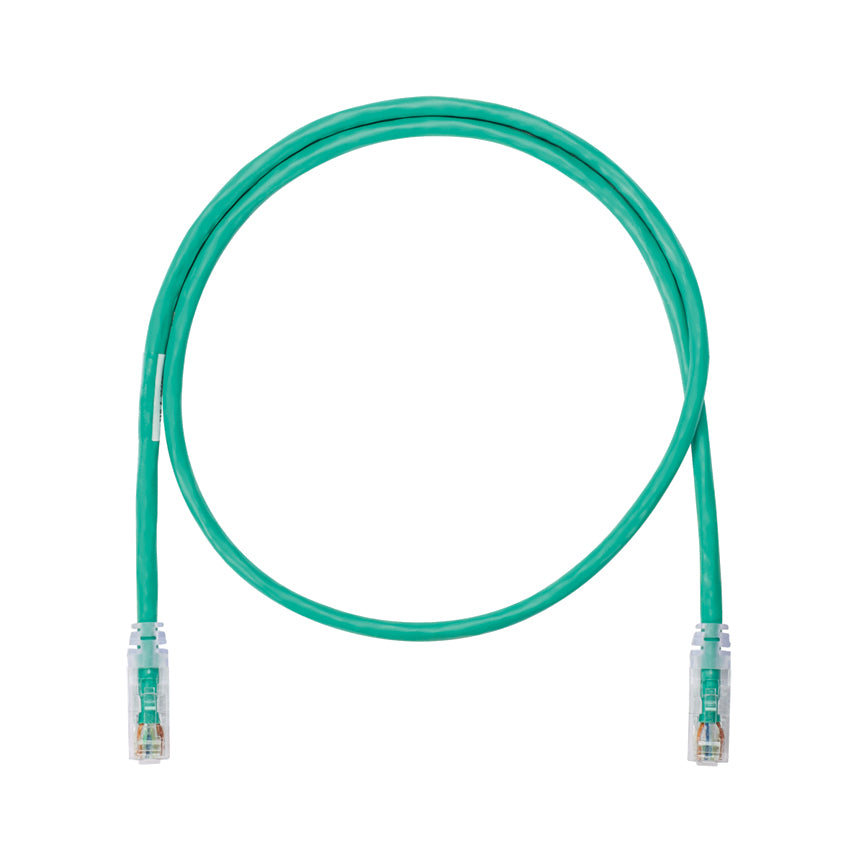

Panduit NK6APC4GR | NetKey Patch Cord
Description
Description
Connect your devices to your network with our reliable Cat 6A UTP patch cord, featuring a tangle-free latch for easy installation and reconfiguration.
Netkey copper patch cord, category 6A, CM/LSZH, 4 ft., Green UTP cable.
Cat 6a/Class EA F/UTP patch cords are constructed of 26 AWG shielded twisted pair stranded copper cable with a UTP modular plug-on each end. Patch cords are offered in multiple colored F/UTP cable for design flexibility with a strain relief boot on each modular plug. All patch cords are wired to be compatible with both T568A and T568B wiring schemes.
Panduit NetKey Patch Cord, CM/LSZH F/UTP, Category: Cat 6a/Class EA, 26 AWG Conductor, Stranded Copper Conductor, Modular Plug Connector, 4 ft Cord Length, Green, 14 to 140 deg F
Panduit - NK6APC4GR - Features
- 100% performance tested for wire map, NEXT and return loss
- Integral pair manager
- Patented tangle-free latch on modular plugs
- Slender strain relief boot
- Provides identification of performance level, length and quality control number for future traceability
Specifications
Specifications
Panduit - NK6APC4GR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK6APC4GR |
| Category | Category 6A |
| Color | Green |
| Lengths | 4 Ft. | 1.22 M |
| Connector Type | Rj45 To Rj45 |
| Shielded | F/Utp - Foiled/Unshielded Twisted Pair |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Product Type | Patch Cord |
| Application | (1) 10GBASE-T Ethernet(2) Wireless deployment(3) Power over Ethernet(4) Video streaming |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | 0.2 |
| Performance Level | Category 6A |
| Conductor Type | Stranded |
| Cable Construction | F/UTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Copper |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 4 |
| Sub Brand | NetKey |
| Nominal Cable Outside Diameter (In.) | 0.25 |
| Wiring Scheme | T568A/T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| UPC | 61305636833 |
