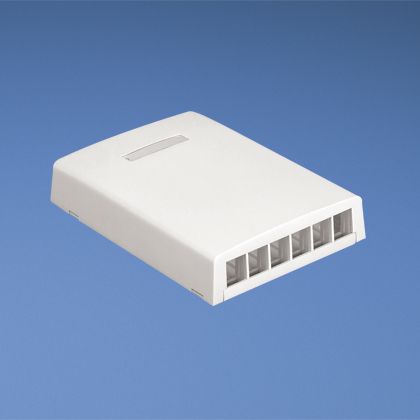

Panduit NK6BXIG-AY | NetKey Elongated Surface Mount Box
Description
Description
Organize and access your data connections easily with our surface mount box, it is plenum rated. It features a secure cover and multiple mounting options.
Surface mount boxes shall have a low profile design and shall be available in a variety of port densities. Boxes shall accept all NetKey keystone modules for fiber, copper and audio/video applications. The boxes shall mount with screws, adhesive or optional magnets and shall include breakouts for use with surface raceway. Cable tie slots shall be included to provide strain relief on incoming cables.
Panduit NetKey Surface Mount Box, 6-Port Elongated, Series: NK Series, For Use With: Keystone Modules, Adhesive Tape/Magnet/Threaded Mounting, 6.66 in Length, 4.7 in Width, 1.26 in Height, ABS, International Gray
Panduit - NK6BXIG-AY - Features
- Accepts all NetKey keystone modules which snap-in and out for easy moves, adds and changes
- Low profile design presents a more discreet or inconspicuous look
- Compatible with specific surface raceway, conceals cable entering the box
- Select boxes provide a screw that secures the cover to the base
- Select boxes include a label pocket to meet TIA/EIA-606B labeling standards
Specifications
Specifications
Panduit - NK6BXIG-AY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK6BXIG-AY |
| Product Type | Elongated Surface Mount Box |
| Number of Ports | 6 |
| Module Type | Keystone |
| Color | International Gray |
| Identification Type | Label Pocket |
| Includes | (1) Box Base, (2) Box Cover, (3) 2- PLT1.5I-C PAN-TY, (4) 2- Mounting Screw, (5) Mounting Screw (Used to Secure Cover to Base), (6) Label/Label Cover, (7) 2- Strip of 3.00" X .75" Foam Tape for Mounting |
| Overall Length (In.) | 6.66 |
| Overall Length (mm) | 169.2 |
| Overall Width (In.) | 4.7 |
| Overall Width (mm) | 119.4 |
| Overall Height (In.) | 1.26 |
| Overall Height (mm) | 32 |
| Sub Brand | NetKey |
| Raceway Opening | LD3/LDP3 or LD5/LDP5, LD10/LDP10 |
| Material | ABS |
| Standards Met | RoHS Compliant |
| UPC | 07498317623 |
Panduit - NK6BXIG-AY - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8538.90.8180 |
