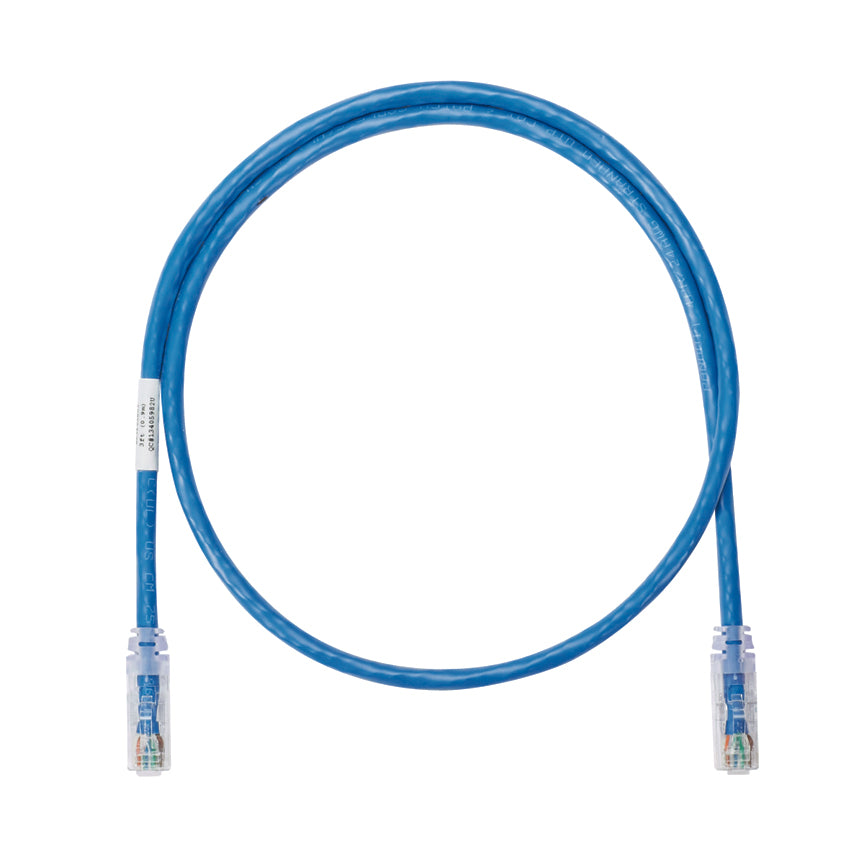

Panduit NK6PC10BUY | NetKey Cat 6 24 AWG UTP Patch Cord, 10 ft, Blue
Description
Description
Connect your devices to your network with our reliable Cat 6 UTP patch cord, featuring a tangle-free latch for easy installation and reconfiguration.
The NetKey Cat 6 UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cords slender strain relief boot provides easy access in high-density applications. The patch cord is 10 feet in length and blue.
Category 6/Class E patch cords are constructed of UTP 24 AWG stranded copper cable and a modular plug at each end. patch cords are used in all work area outlets and patch panels. patch cords are wired to be compatible with both T568A and T568B wiring schemes.
Panduit NetKey Patch Cord, U/UTP, Category: Cat 6, 24 AWG Conductor, Copper Conductor, Modular Plug Connector, 10 ft Cord, Blue, 14 to 140 deg F
Panduit - NK6PC10BUY - Features
- 100% performance tested for wire map, next and return loss
- Centered de-embedded plug
- Integral pair manager
- Patented tangle free latch
- Robust construction
- Meets Category 6 performance requirements
- Tangle free latch prevents snags and provides easy release, saving time on frequent moves, adds, and changes
- Constructed of enhanced performance 24 AWG stranded UTP cable
- 100% performance tested
Specifications
Specifications
Panduit - NK6PC10BUY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK6PC10BUY |
| Category | Category 6 |
| Color | Blue |
| Lengths | 10 Ft. | 3.05 M |
| Connector Type | Rj45 To Rj45 |
| Shielded | U/Utp - Unshielded Twisted Pair |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Product Type | Patch Cord |
| Application | Used in all work area outlets and patch panels; wired to be compatible with both T568A and T568B wiring schemes. Suitable for Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet); 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM ; Token Ring 4/16; and Voice over internet protocol (VoIP) |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Polyvinyl Chloride |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 10 |
| Sub Brand | NetKey |
| Nominal Cable Outside Diameter (In.) | 0.23 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Boot Color | Clear |
| Color | Blue |
| UPC | 07498305545 |
Panduit - NK6PC10BUY - Videos
| Panduit NK6PC10BUY Video 1 | Click to View |
|---|
