Brand: Panduit
|
SKU:
MM10-PA7P-NK-01-MM
Panduit NK6PC10Y | Cbl Assy Mod 24-4pr Strandedcat6 T568a/b 10ft Net Keyoff White
Regular price
$12.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit NK6PC10Y | Cbl Assy Mod 24-4pr Strandedcat6 T568a/b 10ft Ne...
Regular price
$12.72
Unit price
Brand: Panduit
|
SKU:
MM10-PA7P-NK-01-MM
Regular price
$12.72
Unit price
Shipping calculated at checkout.
Description
Description

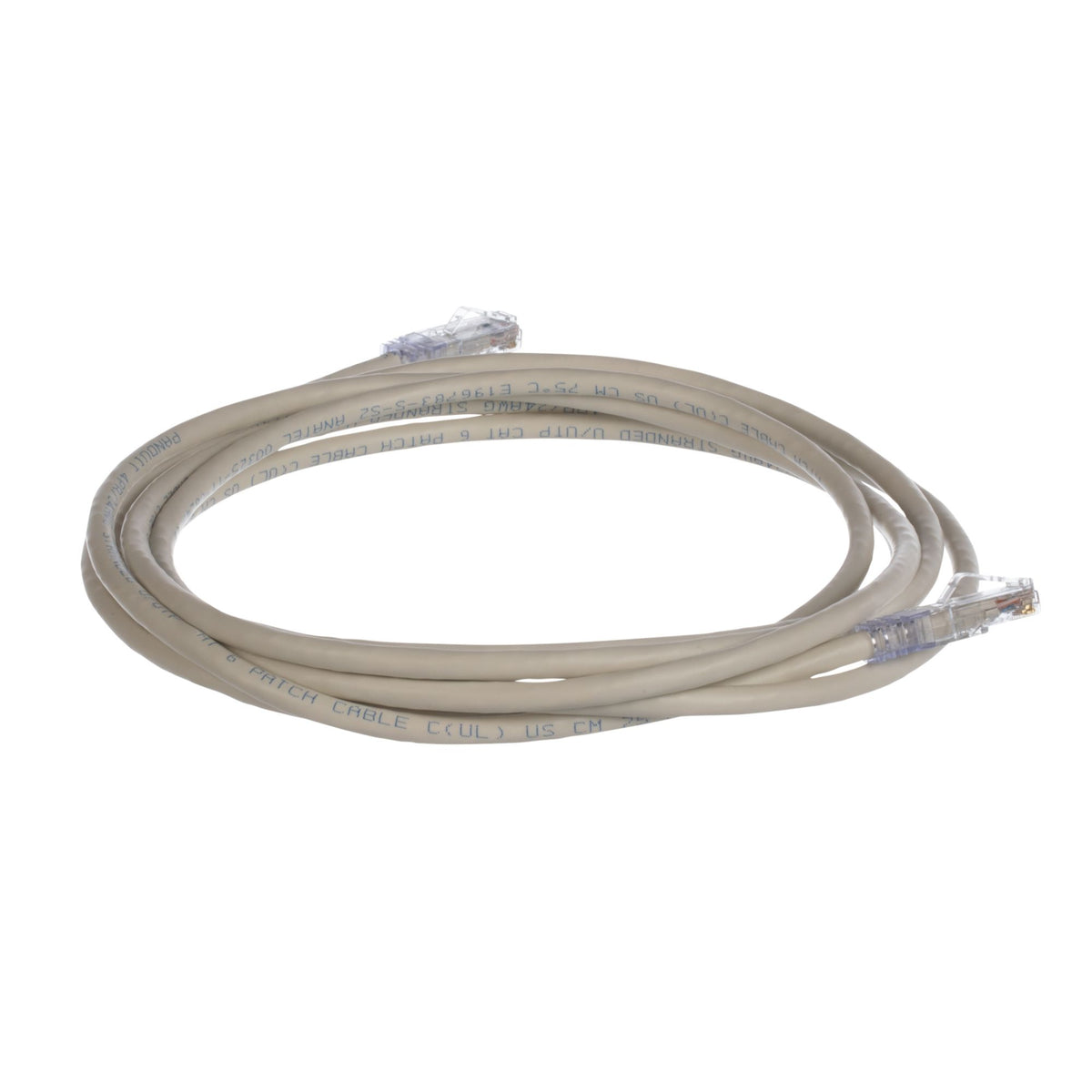

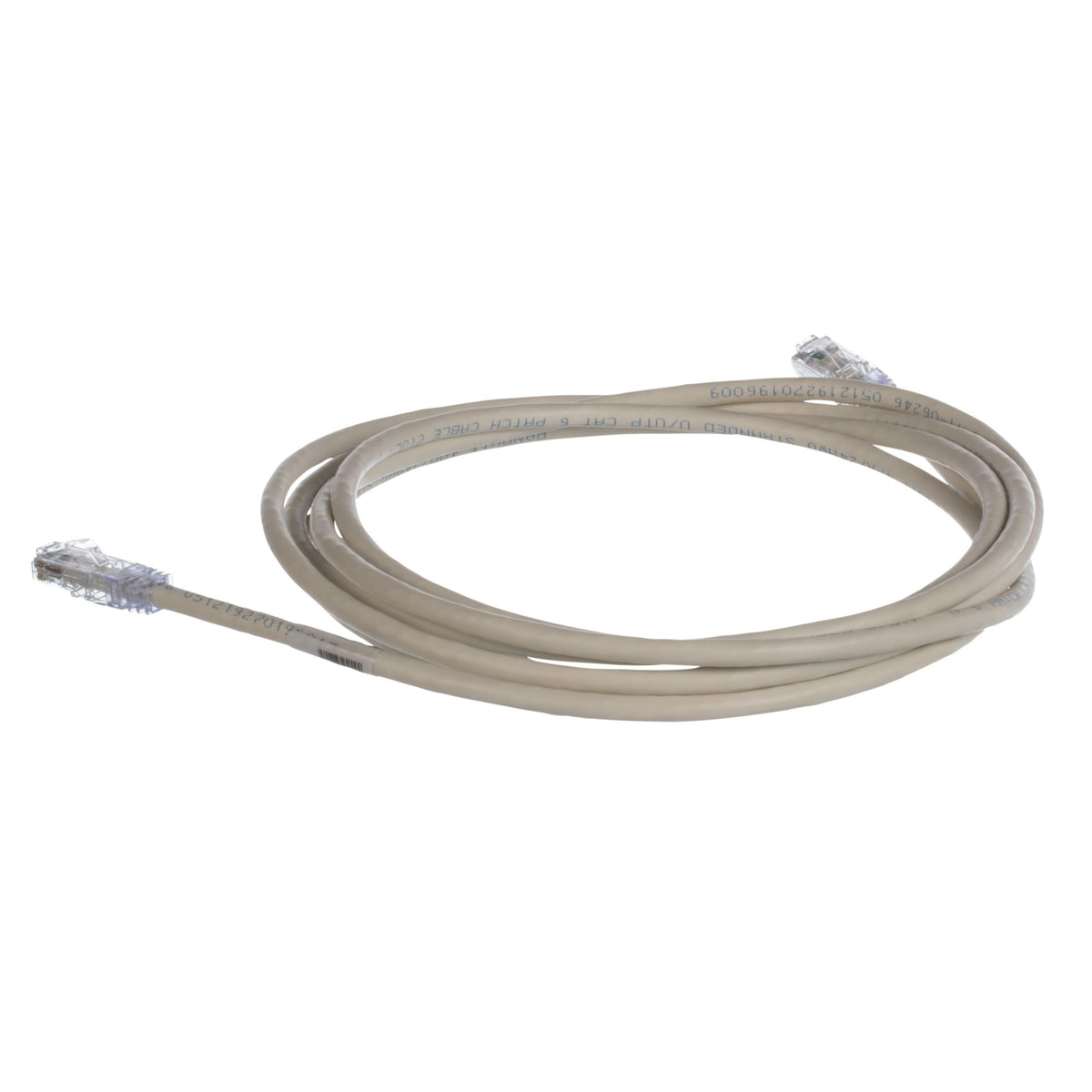

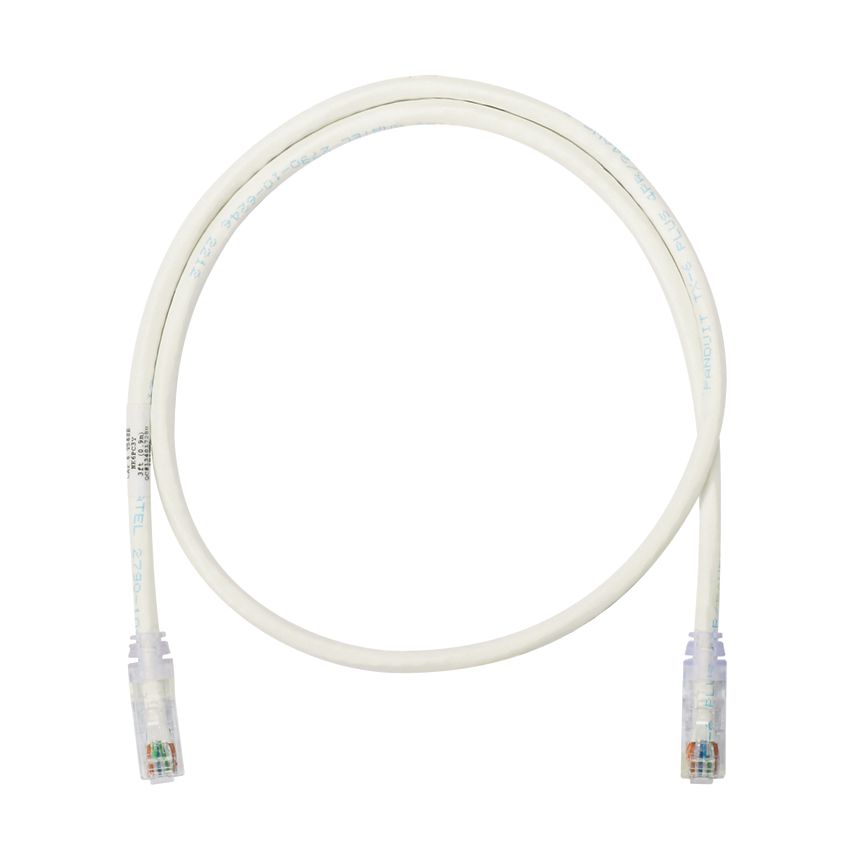

Panduit NK6PC10Y | NetKey Cat 6 24 AWG UTP Patch Cord, 10 ft, IW
The NetKey Cat 6 UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord’s slender strain relief boot provides easy access in high-density applications. The patch cord is 10 feet in length and off white.
Panduit - NK6PC10Y - Features
- Category 6, UTP patch cord with modular plugs on each end.
- Meets Category 6 performance requirements
- Tangle free latch prevents snags and provides easy release, saving time on frequent moves, adds, and changes
- Constructed of enhanced performance 24 AWG stranded UTP cable
- 100% performance tested
Specifications
Specifications
Panduit - NK6PC10Y - Product Categories
- Copper Systems
- Patch Cords
Panduit - NK6PC10Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK6PC10Y |
| Item Description | NetKey Cat 6 24 AWG UTP Patch Cord, 10 ft, IW |
| Application | Used in all work area outlets and patch panels; wired to be compatible with both T568A and T568B wiring schemes. Suitable for Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet); 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM ; Token Ring 4/16; and Voice over internet protocol (VoIP) |
| Product Type | NetKey Copper Patchcord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Polyvinyl Chloride |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 10 |
| Sub Brand | NetKey |
| Nominal Cable Outside Diameter (In.) | 0.23 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Boot Color | Clear |
| Color | Off White |
| Flammability Rating | CM |
| Standards Met | Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E channel requirements; Meets ANSI/TIA-568.2-D and ISO 11801 Category 6 component requirements; complies with ANSI/TIA-1096-A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886); CE Compliant; RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE/PoE+/PoE++ |
| Plug Type | 8 Position |
| RapidID Enabled | No |
| Part Features | 100% performance tested, Patented tangle free latch, Slender strain relief boot, Identification and Variety of color and lengths available |
Panduit - NK6PC10Y - Package Information
| UPC | 07498305544 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0284 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.2836 |
