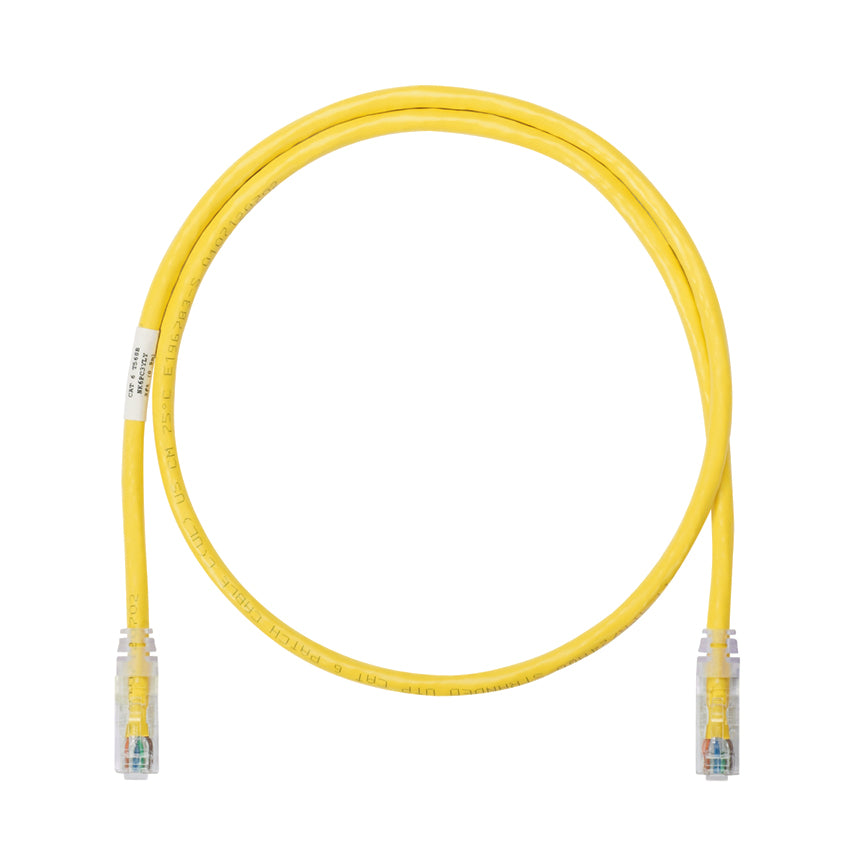

Panduit NK6PC14YLY | NetKey Patch Cord
Description
Description
Connect your devices to your network with our reliable Cat 6 UTP patch cord, featuring a tangle-free latch for easy installation and reconfiguration.
Category 6, UTP patch cord with modular plugs on each end.
The NetKey copper and fiber cabling system provides a complete, standards compliant cabling infrastructure solution for voice, data and video applications. NetKey modules feature the universal ''keystone'' design and are compatible with a wide assortment of modular patch panels, faceplates and surface mount boxes. When teamed with complementary Panduit products, the NetKey solutions cover all your needs from the telecommunication room to the work area with the proven innovation and quality you depend on from Panduit.
Panduit NetKey Patch Cord, Class D, Series: NK6PC, Category: Cat 5e, 24 AWG Conductor, U/UTP Copper Conductor, Modular Plug Connector, 14 ft Cord Length, Yellow, 14 to 140 deg F
Panduit - NK6PC14YLY - Features
- 100% performance tested
- Patented tangle free latch
- Slender strain relief boot
- Meets Category 6 performance requirements
- Tangle free latch prevents snags and provides easy release, saving time on frequent moves, adds, and changes
- Constructed of enhanced performance 24 AWG stranded UTP cable
- 100% performance tested
Specifications
Specifications
Panduit - NK6PC14YLY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK6PC14YLY |
| Category | Category 6 |
| Color | Yellow |
| Lengths | 14 Ft. | 4.27 M |
| Connector Type | Rj45 To Rj45 |
| Shielded | U/Utp - Unshielded Twisted Pair |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Product Type | Patch Cord |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM (3) Token Ring 4/16 (4) Voice over internet protocol (VoIP) |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 14 |
| Sub Brand | NetKey |
| Nominal Cable Outside Diameter (In.) | 0.21 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Boot Color | Clear |
| Color | Yellow |
| Flammability Rating | CM |
| Standards Met | Exceeds ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D channel requirements; Meets ANSI/TIA-568-C.2 and ISO 11801 Category 5e component requirements; Complies with ANSI/TIA-1096A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at; cULus Listed; UL 1863 and CAN/CSA-C22.2 |
| UPC | 07498305553 |
