Panduit NK6PC2MY | NetKey NetKey Copper Patchcord
Regular price
$8.88
Unit price
Brand: Panduit
|
SKU:
MM02M-NK6-01
Regular price
$8.88
Unit price
Description
Description

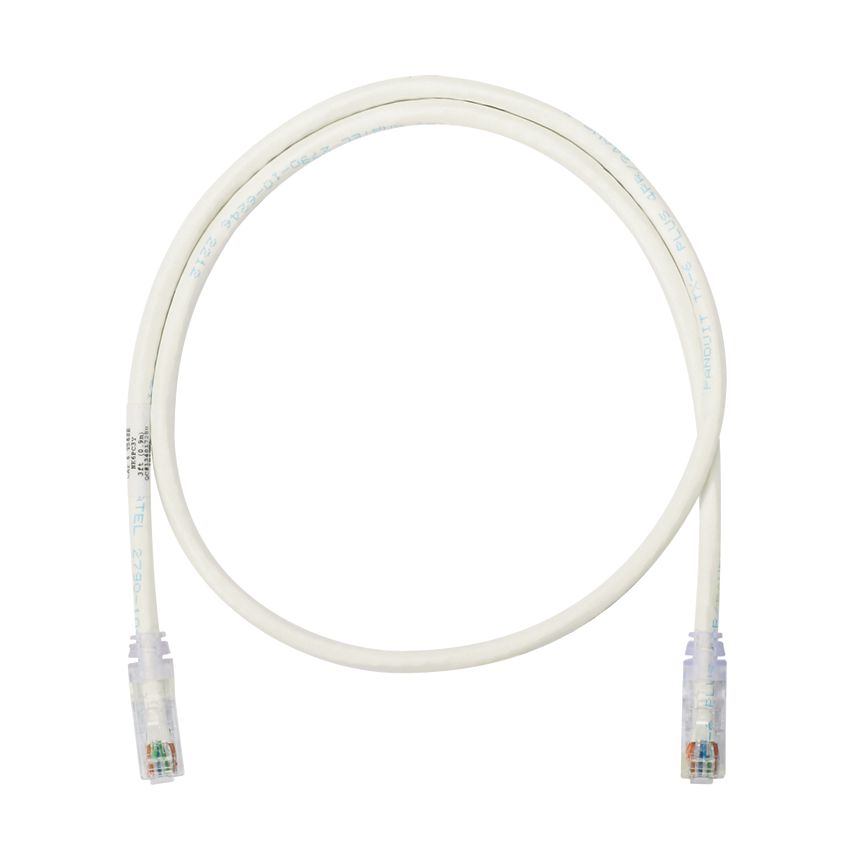

Panduit NK6PC2MY | NetKey NetKey Copper Patchcord
The NetKey Cat 6 UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord’s slender strain relief boot provides easy access in high-density applications. The patch cord is 2 meters in length and off white.
Specifications
Specifications
Panduit - NK6PC2MY - Product Categories
- Copper Systems
- Patch Cords
Panduit - NK6PC2MY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK6PC2MY |
| Item Description | NetKey NetKey Copper Patchcord |
| Application | Used in all work area outlets and patch panels; wired to be compatible with both T568A and T568B wiring schemes. Suitable for Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet); 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM ; Token Ring 4/16; and Voice over internet protocol (VoIP) |
| Product Type | NetKey Copper Patchcord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | NetKey |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Polyvinyl Chloride |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 2 |
| Nominal Cable Outside Diameter (mm) | 6 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Boot Color | Clear |
| Color | Off White |
| Flammability Rating | CM |
| Standards Met | Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E channel requirements; Meets ANSI/TIA-568.2-D and ISO 11801 Category 6 component requirements; complies with ANSI/TIA-1096-A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886); CE Compliant; RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE/PoE+/PoE++ |
| Plug Type | 8 Position |
| RapidID Enabled | No |
| Part Features | 100% performance tested, Patented tangle free latch, Slender strain relief boot, Identification and Variety of color and lengths available |
Panduit - NK6PC2MY - Package Information
| UPC | 07498378570 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0269 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.2694 |
