Brand: Panduit
|
SKU:
MM03-NK6-06-TP
Panduit NK6PC3BUY | Netkey Cat 6 24 Awg Utp Patch Cord, 3 Ft, Blue
Regular price
$8.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit NK6PC3BUY | Netkey Cat 6 24 Awg Utp Patch Cord, 3 Ft, Blue
Regular price
$8.29
Unit price
Brand: Panduit
|
SKU:
MM03-NK6-06-TP
Regular price
$8.29
Unit price
Shipping calculated at checkout.
Description
Description

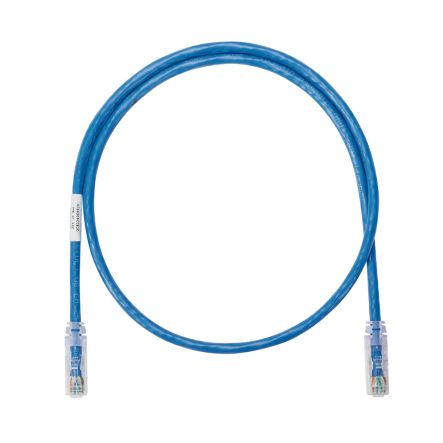

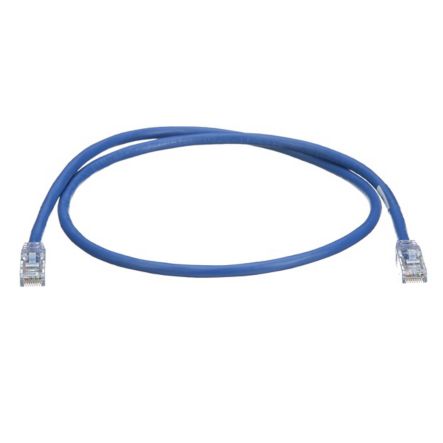

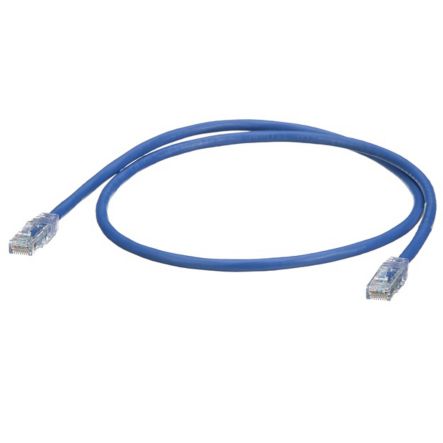

Panduit NK6PC3BUY | Netkey Cat 6 24 Awg Utp Patch Cord, 3 Ft, Blue
The NetKey Cat 6 UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord’s slender strain relief boot provides easy access in high-density applications. The patch cord is 3 feet in length and blue.
Panduit - NK6PC3BUY - Features
- Category 6/Class E patch cords are constructed of UTP 24 AWG stranded copper cable and a modular plug at each end. patch cords are used in all work area outlets and patch panels. patch cords are wired to be compatible with both T568A and T568B wiring schemes.
- Panduit NetKey Patch Cord, U/UTP, Category: Cat 6, 24 AWG Conductor, Copper Conductor, Modular Plug Connector, 3 ft Cord, Blue, 14 to 140 deg F
- 100% performance tested for wire map, next and return loss
- Centered de-embedded plug
- Integral pair manager
- Patented tangle free latch
- Robust construction
Specifications
Specifications
Panduit - NK6PC3BUY - Product Categories
- Copper Systems
- Patch Cords
Panduit - NK6PC3BUY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK6PC3BUY |
| Item Description | Netkey Cat 6 24 Awg Utp Patch Cord, 3 Ft, Blue |
| Application | Used in all work area outlets and patch panels; wired to be compatible with both T568A and T568B wiring schemes. Suitable for Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet); 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM ; Token Ring 4/16; and Voice over internet protocol (VoIP) |
| Product Type | NetKey Copper Patchcord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Polyvinyl Chloride |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 3 |
| Sub Brand | NetKey |
| Nominal Cable Outside Diameter (In.) | 0.23 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Boot Color | Clear |
| Color | Blue |
| Flammability Rating | CM |
| Standards Met | Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E channel requirements; Meets ANSI/TIA-568.2-D and ISO 11801 Category 6 component requirements; complies with ANSI/TIA-1096-A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886); CE Compliant; RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE/PoE+/PoE++ |
| Plug Type | 8 Position |
| RapidID Enabled | No |
| Part Features | 100% performance tested, Patented tangle free latch, Slender strain relief boot, Identification and Variety of color and lengths available |
| MPN: | NK6PC3BUY |
| Category Type: | Cat 6 |
| Color: | Blue |
| Conductor Size: | 24 AWG |
| Conductor Type: | Copper |
| Connector Type: | Modular Plug |
| Cord Length: | 3 ft |
| Jacket Color: | Blue |
| Series: | NK6PC |
| Temperature Rating: | 14 to 140 deg F |
| Type: | U/UTP |
Panduit - NK6PC3BUY - Package Information
| UPC | 07498305560 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0170 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1703 |
