Brand: Panduit
|
SKU:
326690

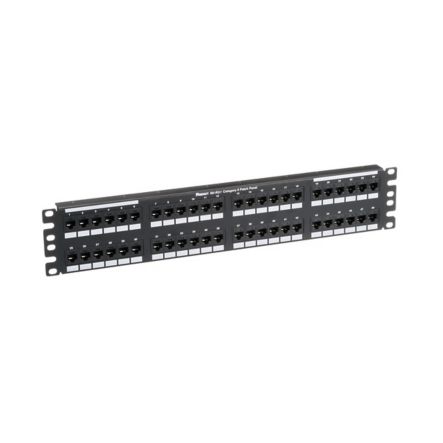

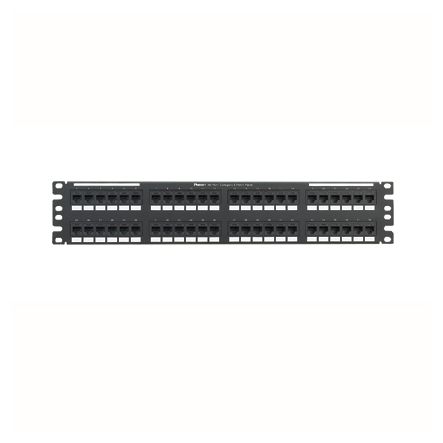

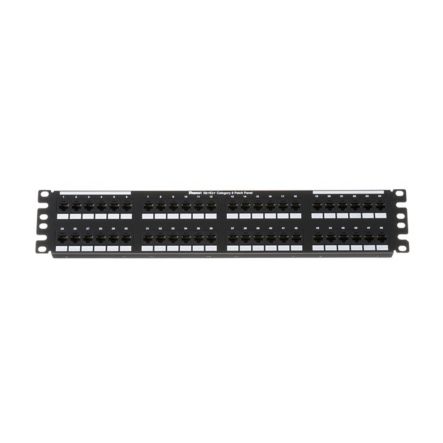

Panduit NK6PPG48Y | Cat 6 Punchdown Keystone Patch Panel, 48 Port
Regular price
$570.89
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit NK6PPG48Y | Cat 6 Punchdown Keystone Patch Panel, 48 Port
Regular price
$570.89
Unit price
Description
Description
Panduit NK6PPG48Y | Cat 6 Punchdown Keystone Patch Panel, 48 Port
The NetKey Flat Punchdown Keystone Patch Panel terminates 4-pair, 22–26 AWG, 100 ohm twisted pair cable. These Cat 6 patch panels mount to 19" and 23" racks and incudes 48 ports. The RJ45 interface provides a quick plug and play connection to RJ45 patch cords. This punchdown patch panel is 2 RU, made of steel and is black.
Panduit - NK6PPG48Y - Features
- Meets all Category 6 requirements
- Punchdown style termination on back of patch panel
- Wiring scheme clearly identified on universal label
- Terminates 4-pair 24 to 22 AWG 100 ohm unshielded twisted pair cable
- Accepts icons for port indentification
Specifications
Specifications
Panduit - NK6PPG48Y - Product Categories
- Copper Systems
- Populated Patch Panels
Panduit - NK6PPG48Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK6PPG48Y |
| Item Description | Cat 6 Punchdown Keystone Patch Panel, 48 Port |
| Product Type | Patch Panel Kit |
| Termination Style | Punchdown |
| Patch Panel Style | Flat |
| Performance Level | Category 6 |
| Material | CRS |
| Wiring Scheme | T568A/T568B |
| Number of Ports | 48 |
| Module Type | RJ45 |
| Number of Rack Units | 2 |
| Overall Width (In.) | 19 |
| Overall Width (mm) | 482.6 |
| Sub Brand | NetKey |
| Overall Depth (In.) | 1.17 |
| Overall Depth (mm) | 29.7 |
| Overall Height (In.) | 3.47 |
| Overall Height (mm) | 88.1 |
| Identification Type | Adhesive Label |
| Color | Black |
| Standards Met | Meets all TIA/EIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E channel requirements at swept frequencies up to 250 MHz, Meets ANSI/TIA-568-C.2 and ISO 11801 Category 6 component requirements at swept frequencies up to 250 MHz, Complies with ANSI/TIA-1096A (formerly FCC Part 68); Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications, UL 1863 approved, and RoHS Compliant |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | -14 |
| Overall Length (In.) | 1.17 |
| Overall Length (mm) | 29.7 |
Panduit - NK6PPG48Y - Package Information
| UPC | 07498305581 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.2332 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 2.3321 |
